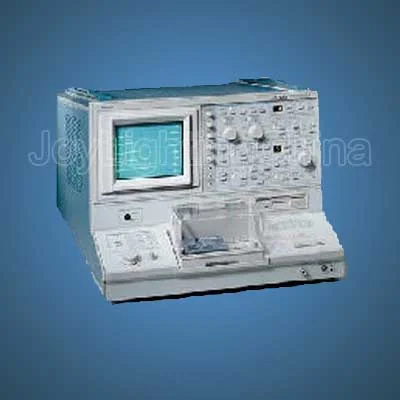

Tektronix 370B Curve Tracer

Programmable curve tracer with collector supply to 2000 V and 20 A peak pulse current.

BrandTektronix

CategoryParametric and Curve Tracing Testers

Ask For A Quotation WhatsApp

Overview

370B curve tracer characteristics as published for the collector supply and step generator.

Specifications

Peak voltage ranges16 V / 80 V / 400 V / 2,000 V

Polarity modesAC, ± DC, ± leakage, ± rectified sine

Peak current by range10 A / 2 A / 0.4 A / 0.05 A

Peak current, pulse mode20 A / 4 A / 0.8 A / 0.1 A

Minimum series resistance0.26 Ω / 6.4 Ω / 160 Ω / 20 kΩ

Maximum series resistance800 Ω / 20 kΩ / 500 kΩ / 12.5 MΩ

Peak power, 16 / 80 / 400 V ranges0.08, 0.4, 2, 10, 50, 220 W

Peak power, 2,000 V range0.08, 0.4, 2, 10, 50 W

Variable collector supply0 to 100 % of maximum peak voltage in 0.1 % increments

Looping compensationat least 100 pF (typical)

Step generator, incremental accuracy1.5 %

Step generator, offset control range-10 to +10 times step amplitude

Current mode amplitude range50 nA to 200 mA, 1-2-5 sequence, 21 steps

Voltage mode amplitude range50 mV to 2 V, 1-2-5 sequence, 6 steps
