Split Core CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Split Core CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

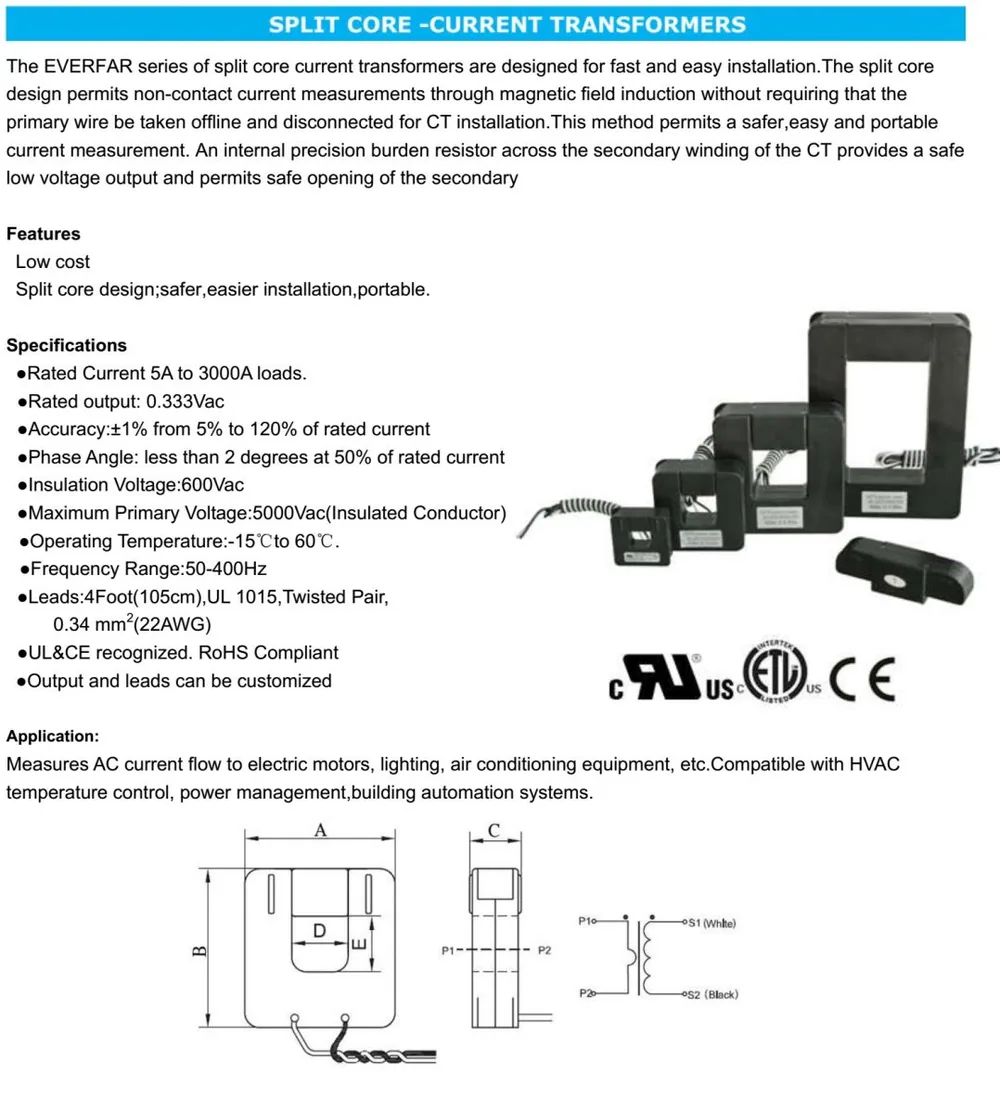

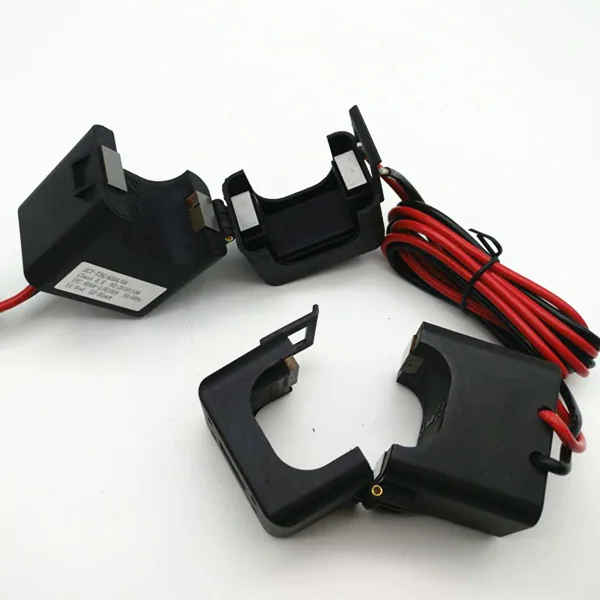

clamp ct split core current transformer
Rated Current 5A to 3000A loads.
Rated output: 0.333VAC
Accuracy: ± 1% from 5% to 120% of rated current
Phase Angle: Less than 2 degrees at 50% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Operating Temperature: -15Cto 60C.
Frequency Range: 50-400Hz
Leads: 4Foot(105cm), UL 1015, Twisted Pair,
UL&CE recognized. RoHS Compliant
Output and leads can be customized

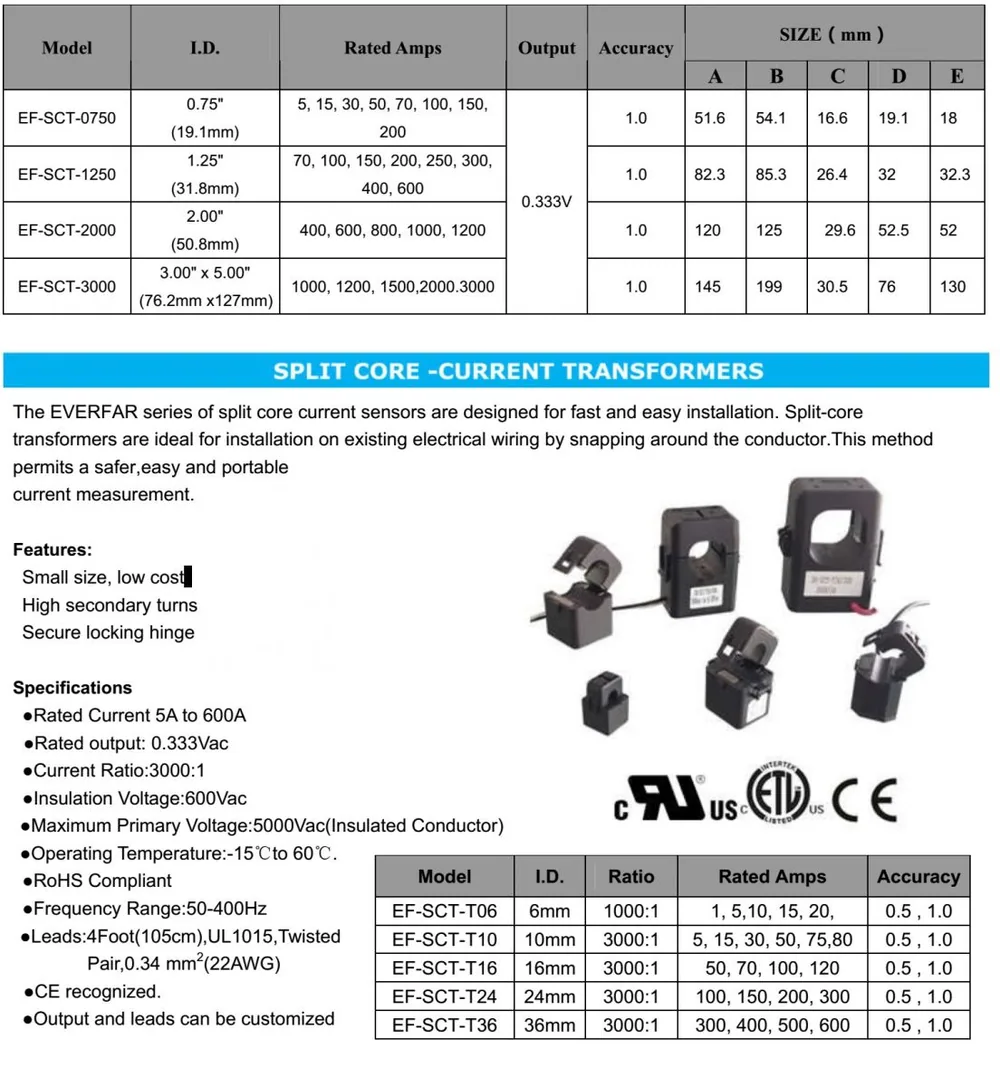

| Model | I. D. | Rated Amps | Output | Accuracy | SIZE ( mm ) | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| EF-SCT-0750 | 0.75" (19.1mm) | 5, 15, 30, 50, 70, 100, 150, 200 | 0.333V | 1.0 | 51.6 | 54.1 | 16.6 | 19.1 | 18 |
| EF-SCT-1250 | 1.25" (31.8mm) | 70, 100, 150, 200, 250, 300, 400, 600 | 1.0 | 82.3 | 85.3 | 26.4 | 32 | 32.3 | |
| EF-SCT-2000 | 2.00" (50.8mm) | 400, 600, 800, 1000, 1200, 1500 | 1.0 | 120 | 125 | 29.6 | 52.5 | 52 | |
| EF-SCT-3000 | 3.00" x 5.00" (76.2mm x127mm) | 1000, 1200, 1500, 2000.3000 | 1.0 | 145 | 199 | 30.5 | 76 | 130 | |
Maximum continuous primary current 5A to 600AAC
Current Ratio: 3000: 1
Accuracy: ± 1% from 5% to 120% of rated current
Insulation Voltage: 600VAC
Maximum Primary Voltage: 5000VAC(Insulated Conductor)
Phase angle: Less than 2 degrees at 50% of rated current
Frequency Range: 50 Hz to 400 Hz
Operating Temperature: -15C to 60C.
Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
CE recognized, and RoHS compliant
Output and leads can be customized
| Model | I.D. | Ratio | Rated Amps | Accuracy |
|---|---|---|---|---|
| EF-SCT-T06 | 6mm | 1000:1 | 1, 5,10, 15, 20, | 0.5 , 1.0 |
| EF-SCT-T10 | 10mm | 3000:1 | 5, 15, 30, 50, 75,80 | 0.5 , 1.0 |
| EF-SCT-T16 | 16mm | 3000:1 | 50, 70, 100, 120 | 0.5 , 1.0 |
| EF-SCT-T24 | 24mm | 3000:1 | 100, 150, 200, 300 | 0.5 , 1.0 |
| EF-SCT-T36 | 36mm | 3000:1 | 300, 400, 500, 600 | 0.5 , 1.0 |
