Flexible Rogowski Coil CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Flexible Rogowski Coil CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

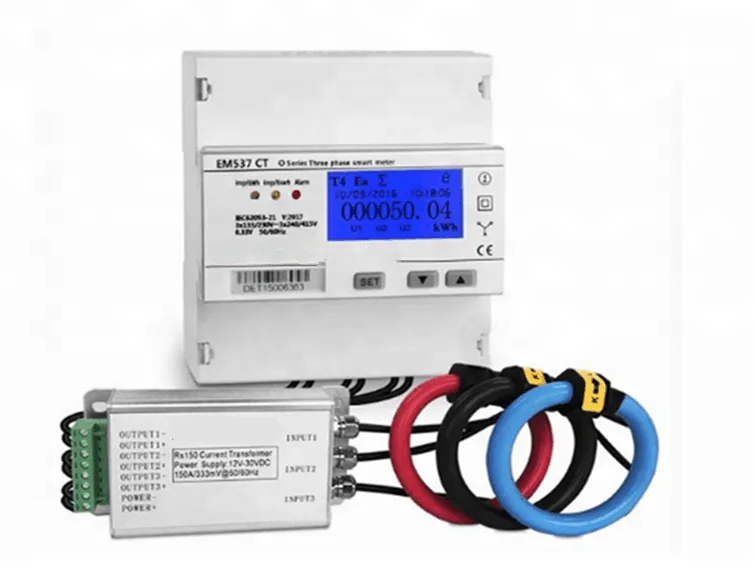

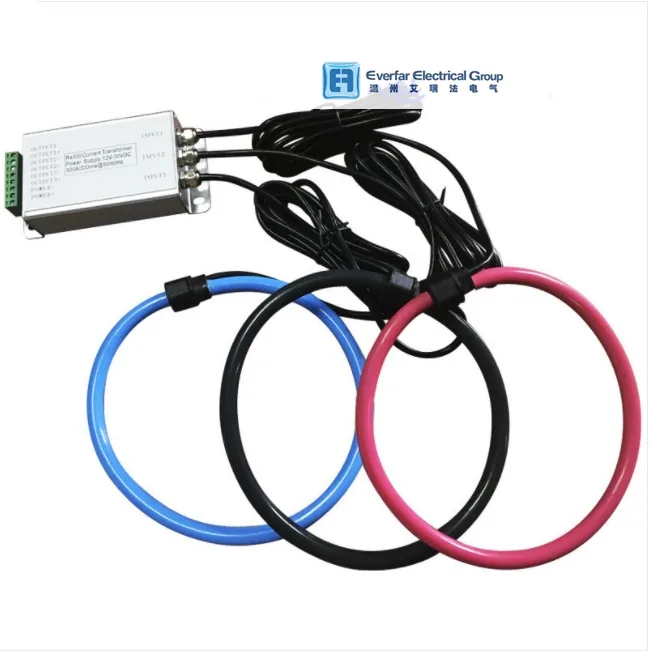

3P Rogowski Coil CT

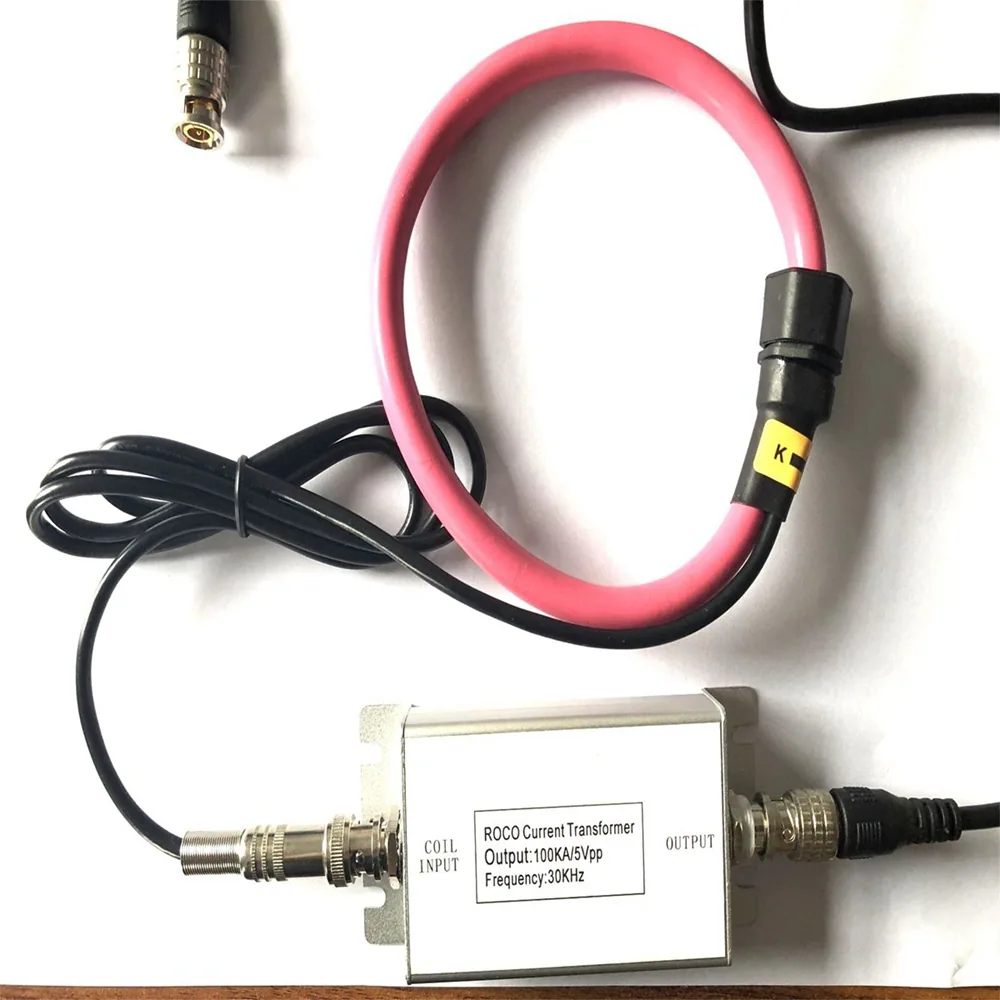

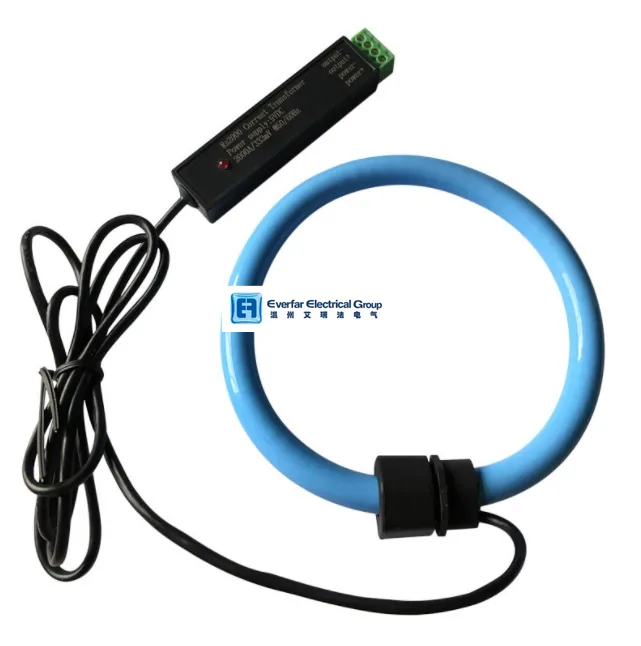

The Flexible Rogowski coil current transformer series is designed for easy-integration in
a variety of applications and systems. Rope Style Form Factor Rope-like coil allows it to
fit into any constrained spatial configuration ranging from panels, wire bundles or irregular
sized bus where regular solid core CT or split core CT cannot be used.
The split design permits non-contact AC current or current pulse measurement without
requiring that the primary conductor be taken offline and disconnected for the current
sensor installation. This method provides for the safe, easy and portable
measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant
advantages over the standard magnetic core current transformer products. Specifically,
since the sensor does not incorporate a magnetic core, magnetic core saturation
(the point where incremental increases in magnetic flux are not reflected in proportional
increases in secondary signal outputs) is avoided
Input current range:0-10000A
Output :Flexible Rogowski coils 0.333Vac,100mV/per 1000A, 0-5Vac
Bandwidth :1Hz-1MHz
Accuracy :≤±1%
Response time :<10ms
Auxiliary power supply :6-12VDC
Coil length :≤2m
Status indicator :LED light
Storage temperature range :-40ºC-70ºC
Operating temperature range :-20ºC-55ºC
Storage humidity range :10%-90% without dew
Operating humidity range :10%-90% without dew
| Rated current (rms) | 10A-100KA |
|---|---|
| Output | mV (without integrator) |
| 0-5V AC(with integrator) | |
| Power supply | 9V-24V |
| Coil length | 20cm-200cm |
| Tube | UL material |
| Wire lead | Shielded cable |
| Isolation voltage | 3500V |
| Operating temperature | -25ºC-+70ºC |
| Frequency | 50Hz-60Hz |
| Accuracy | ±1% |
| Dimensions(mm) | RS-210 | RS-350 | RS-420 | RS-510 | RS-600 | RS-800 |
|---|---|---|---|---|---|---|
| A Window size((mm)±10% | 60mm | 103mm | 125mm | 155mm | 180mm | 245mm |
| B Rogowski Coil O.D.(mm)±10% | 73mm | 120mm | 141mm | 171mm | 201mm | 266mm |
| C Rogowski Coil Diameter | 6.5mm | 8mm | 8mm | 8mm | 10.5mm | 10.5mm |
| D Wire Lead Diameter | 4mm | 4mm | 4mm | 4mm | 4mm | 4mm |
