Flexible Rogowski Coil CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Flexible Rogowski Coil CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

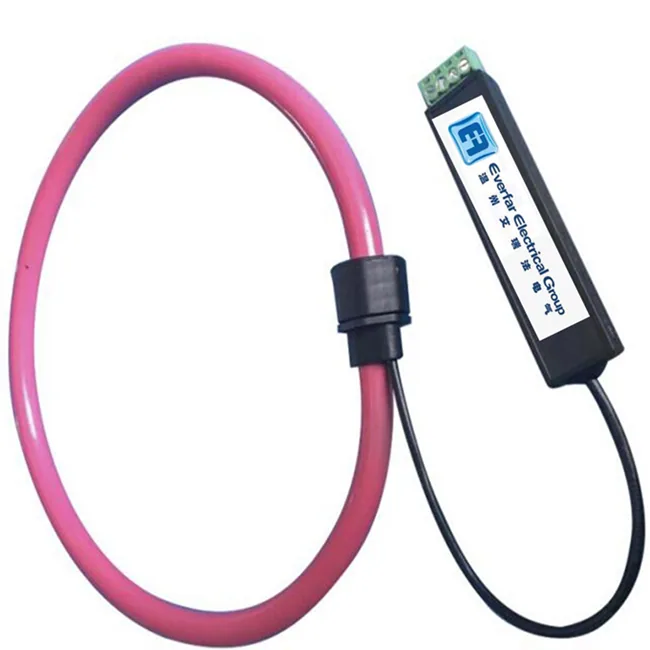

Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation.
They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing accurate, true rms measurement, of voltage or current.
| Accuracy | 1.0 |
| Frequency Range | 10Hz to 10MHz |
| Linearity (10% to 100% of range) | ±0.1% of reading |
| Bandwidth | 2Hz to 100kHz |
| Conductor Position Sensitivity | ±2% Maximum |
| Inuence of External Field | ±2% |
| Operating temperature | -20 ℃ to 70 ℃ |
Accuracy
Frequency Range
10Hz to 10MHz
Linearity (10% to 100% of range)
±0.1% of reading
Bandwidth
2Hz to 100kHz
Conductor Position Sensitivity
±2% Maximum
Inuence of External Field
±2%
Operating temperature
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
