Ring type CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Ring type CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

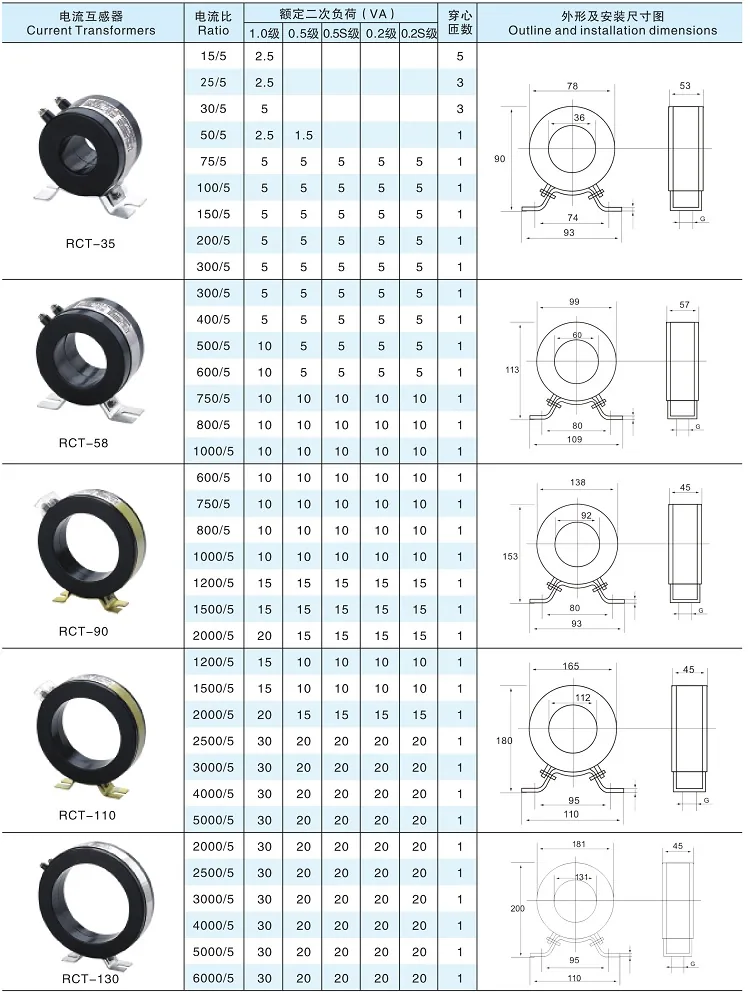

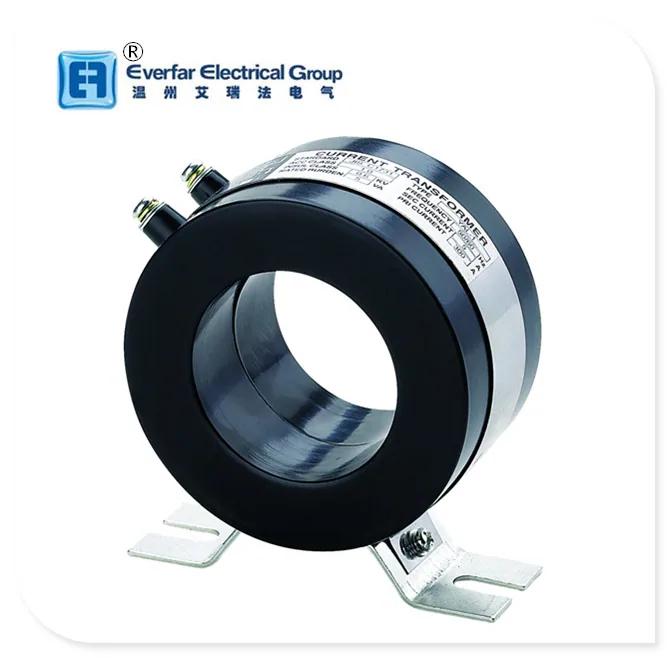

A simple design (5 frames) plastic case steel feet current transformer, low cost.
Base mounting
Low cost
Primary current from 5A to 3000A.
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
