Mini Current Transformer
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Mini Current Transformer |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

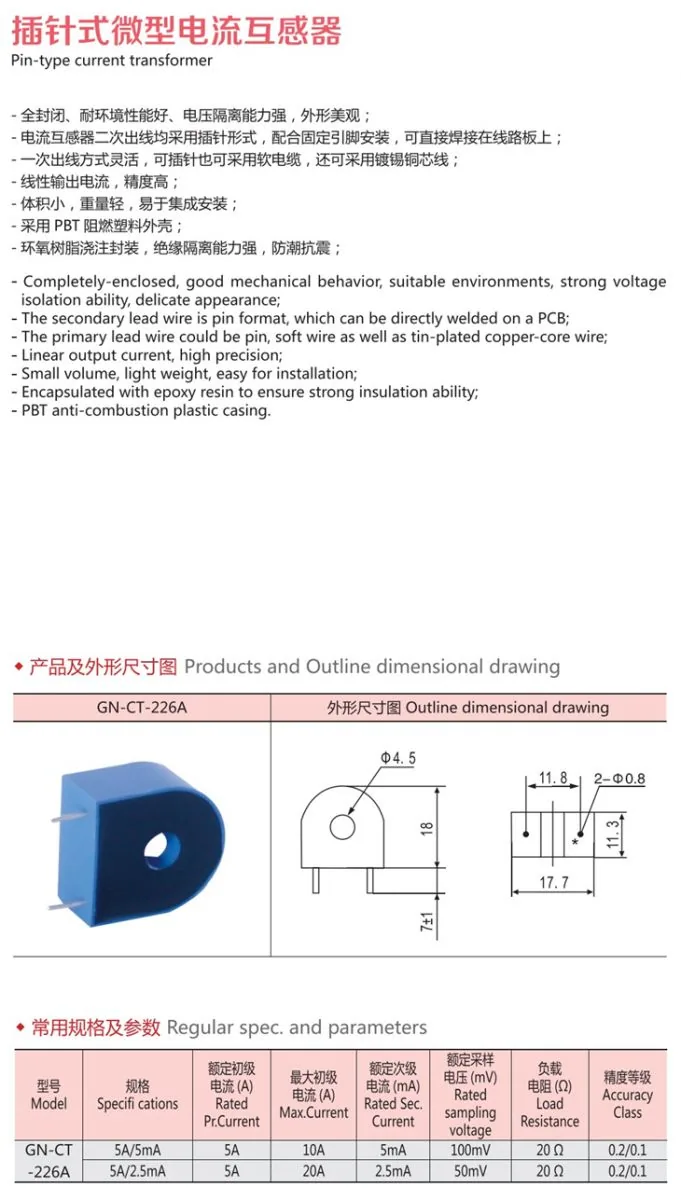

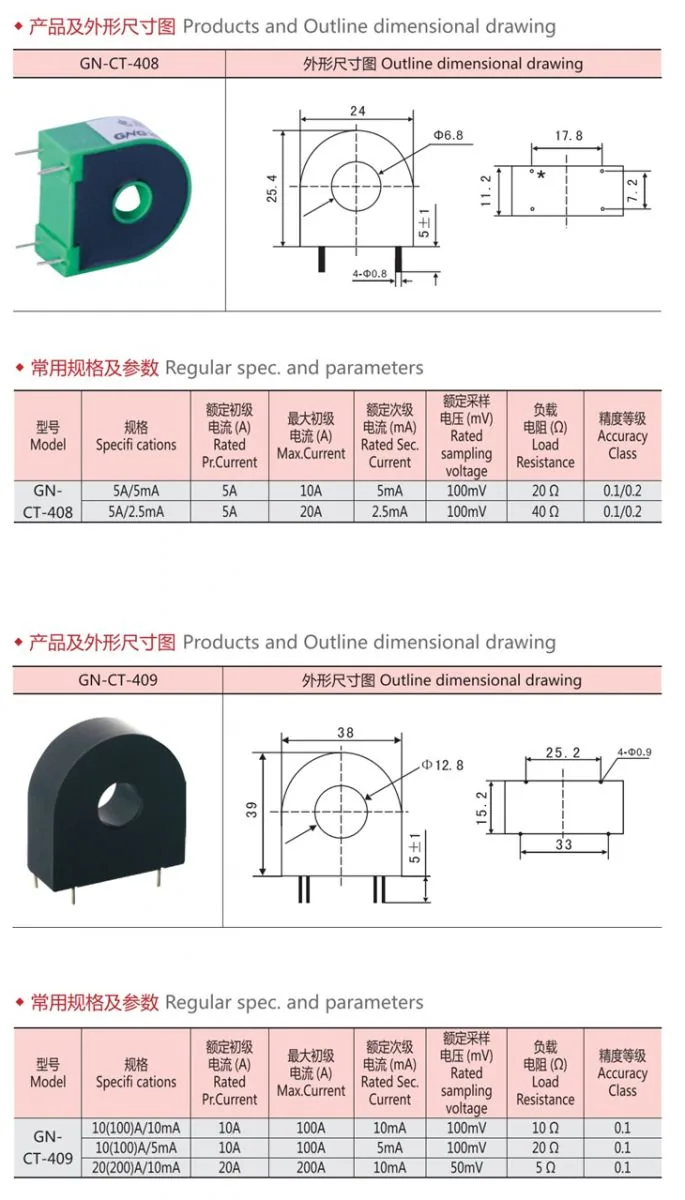

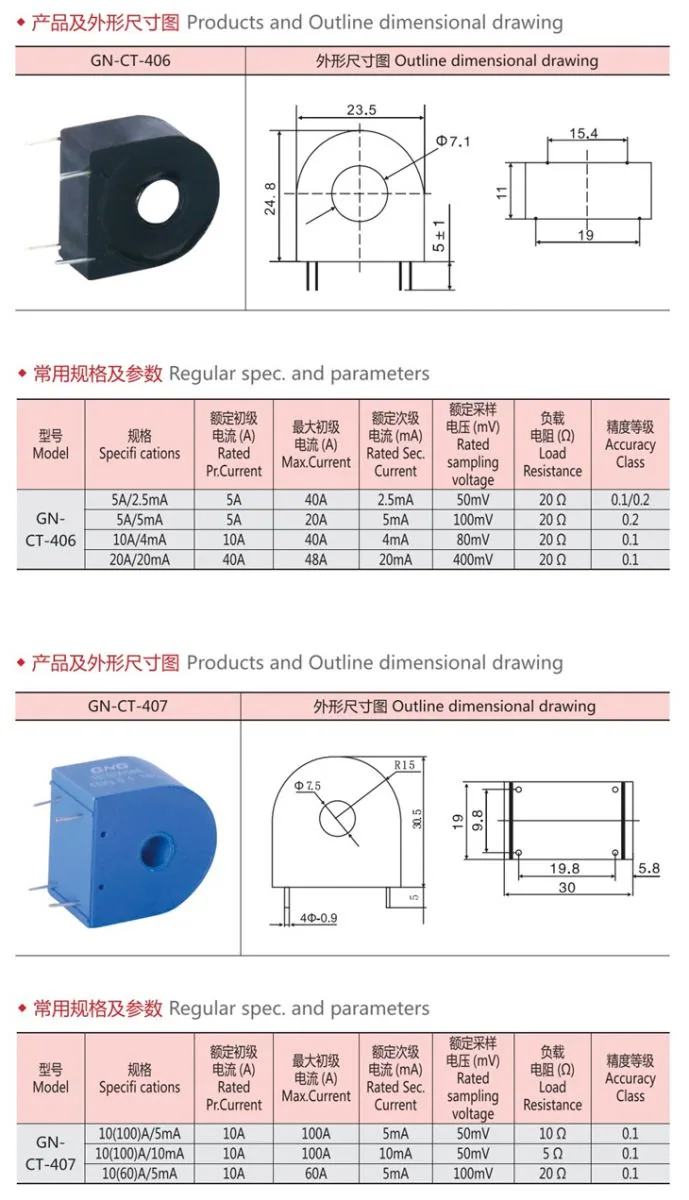

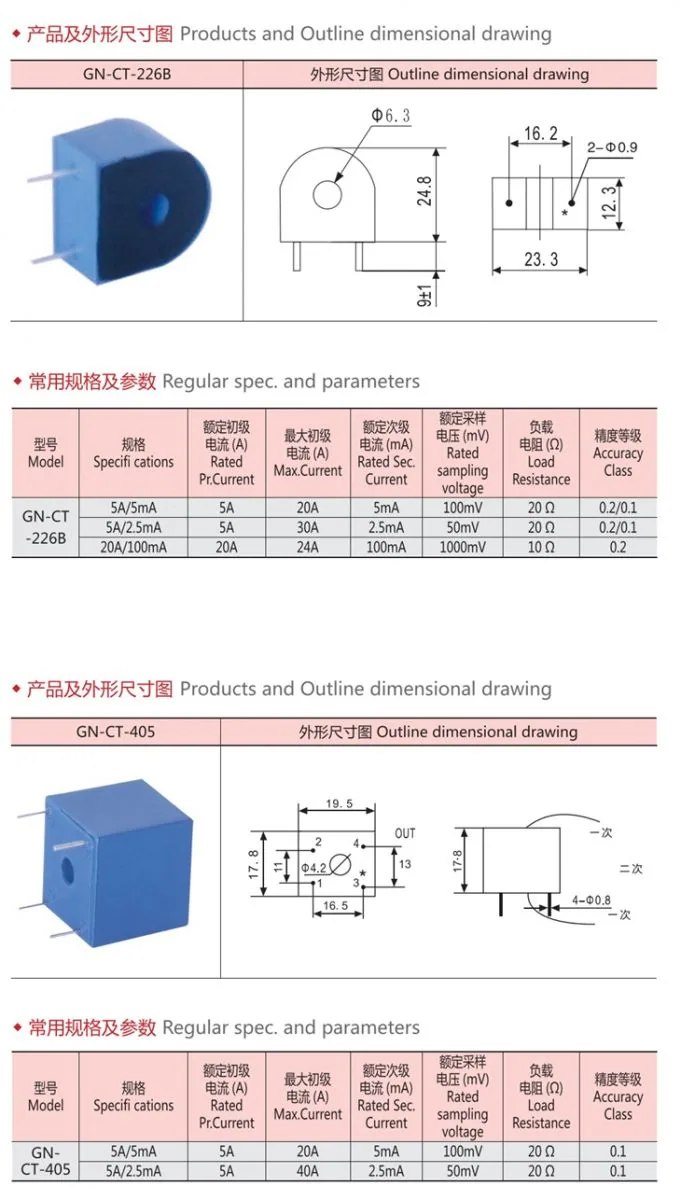

Mini PCB Mount Current Transformer
Features
Low cost. Low profile for PCB mounting
High accuracy, wide linear range, low phase shift error
Burn-resistant case and filler
Specifications
Accuracy Class: 0.1
Dielectric strength: 2500V/min
Dielectric Resistance: 1000M Ohms @ 500 VDC
Working frequency 50-400Hz
Ambient temperature: -25degrees~+85degrees
RoHS Compliant
CE-approved
Customer specifications are available
Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
