Ring type CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Ring type CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |

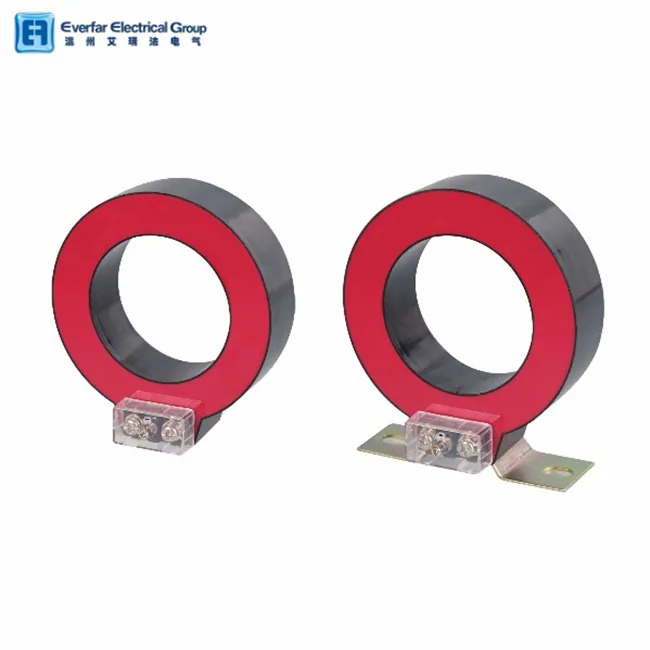

Toroidal current transformer
LZCK series instrument current transformers applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Ambient temperature:-35°C~+55°C,not exceeding +40°C.
The Height of above sea level:0~ 3000m .
Atmosphere conditions: No highly polluted,errosion,erosiveness,radioactivity gases.
(continuous working under the rated current is allowed)
(P2 represents for primary polar end,S1,S2 represent for secondary polar end
P2 and S2 are subtractive polarity.
Rated frequency::50Hz or 60Hz
Rated secondary current:5A or 1A
Secondary winding power frequency withstand voltage:3kV,1min
Safety Factor Rating (FS) < 5
standard of Application:GB1208-2006;IEC 60044-1;NTC 2205
Accuracy Class: 0.5S or 0.5, 1;
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
