How do I ask for a quotation on this item?

Email sales@everfarelec.com.cn with the product name, the rating and the accuracy class you need and the quantity.

Can this item be made to our own specification?

Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.

Which certifications are available?

Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.

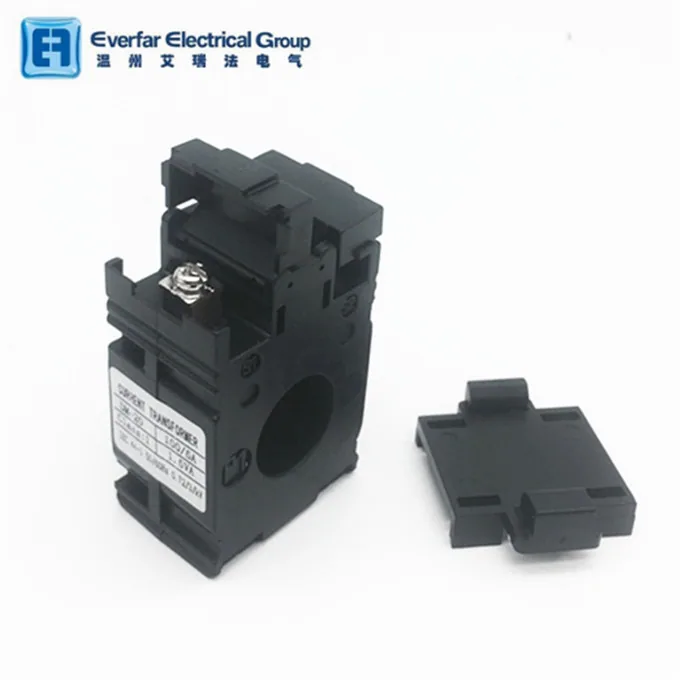

DM Equal to IME MINI CT | Current Transformers

DM20 100/ 5A 1cl . 1.5$/per,exactly match Lovato ( DM0T ), IME ( TABB ) Rayleigh CT.Samples free!
DM Series · DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A Construction :	DM Series		DM Series		· DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A	Construction :
DM Series		DM Series		· DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A
DM Series
Construction :

DM Series		DM Series		· DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A
DM Series

DM Series

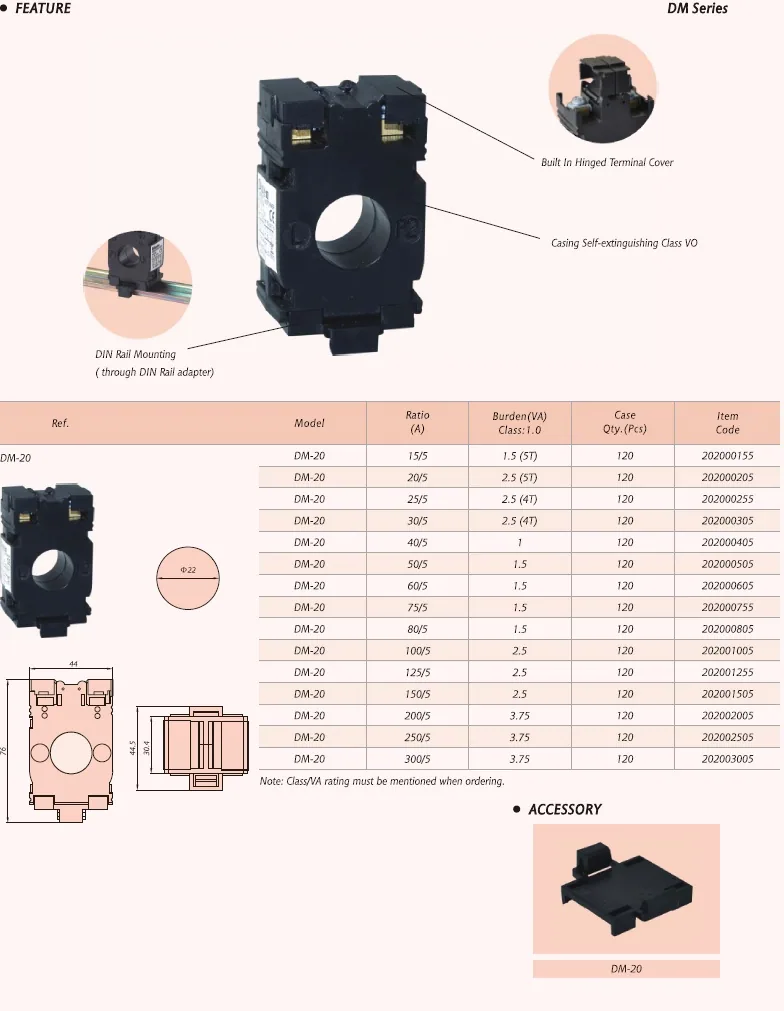

DESCRIPTION

A world famous MINI design plastic case current

transformer, snap on body, be wildly used in

generators.

FEATURE

Two built in fixing methods:DIN rail; Busbar mounting

Built in hinged terminal cover

Compact design

Primary current from 5A to 300A.

SPECIFICAIONS

Rated Frequency 50/60Hz

Rated test voltage 3kV AC. (1 min)

Rated short-time thermal current(Ith) 60In

Rated dynamic current, (Idyn) 2.5Ith

Rated voltage,(Um) 0.72Kv AC.

Continuous overload,(Id) 1.2In

Operating temperature -10℃~50℃

Housing self-extinguishing class VO

Safety factor FS 5

Secondary current 5A/1A

Construction :

AF-30

DM20 100/ 5A 1cl . 1.5$/per,exactly match Lovato ( DM0T ), IME ( TABB ) Rayleigh CT.Samples free!
DM Series · DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A Construction :	DM Series		DM Series		· DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A	Construction :
DM Series		DM Series		· DESCRIPTION A world famous MINI design plastic case current transformer, snap on body, be wildly used in generators. ·FEATURE Two built in fixing methods:DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 300A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A
DM Series
Construction :
