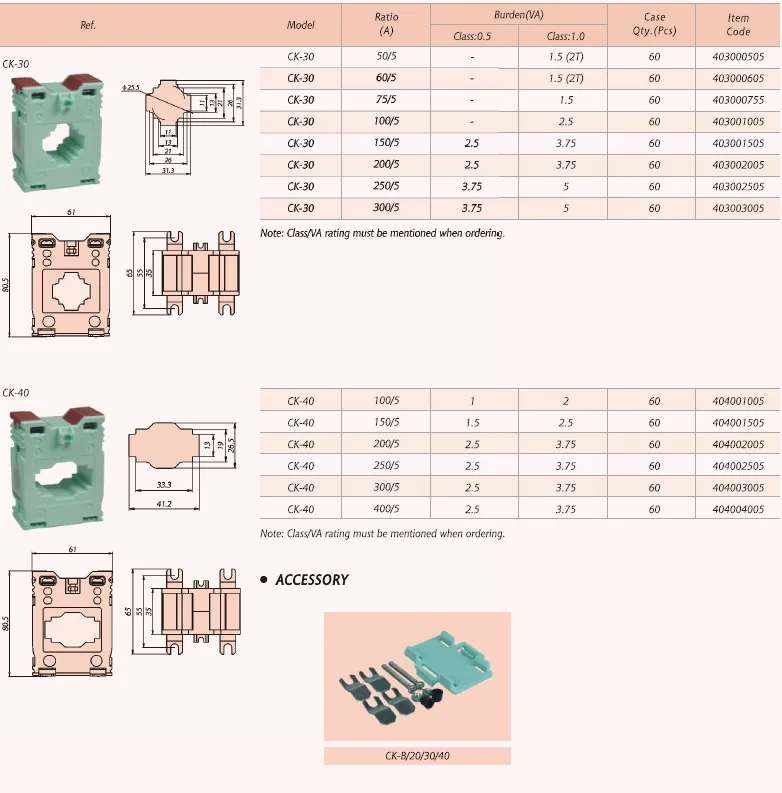

CK Small Fixed type CT | Current Transformers

CK Series ·DESCRIPTION A new range of (4 frames) compact design plastic case current transformer. It has very good performance in space limitation panels. ·FEATURE Three built in fixing methods:Side base; DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 400A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A	CK Series		CK Series		·DESCRIPTION A new range of (4 frames) compact design plastic case current transformer. It has very good performance in space limitation panels. ·FEATURE Three built in fixing methods:Side base; DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 400A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A
CK Series		CK Series		·DESCRIPTION A new range of (4 frames) compact design plastic case current transformer. It has very good performance in space limitation panels. ·FEATURE Three built in fixing methods:Side base; DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 400A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A
CK Series

CK Series		CK Series		·DESCRIPTION A new range of (4 frames) compact design plastic case current transformer. It has very good performance in space limitation panels. ·FEATURE Three built in fixing methods:Side base; DIN rail; Busbar mounting Built in hinged terminal cover Compact design Primary current from 5A to 400A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A / 1A
CK Series

CK Series

DESCRIPTION

A new range of (4 frames) compact design plastic case current transformer. It has very good performance in space limitation panels.

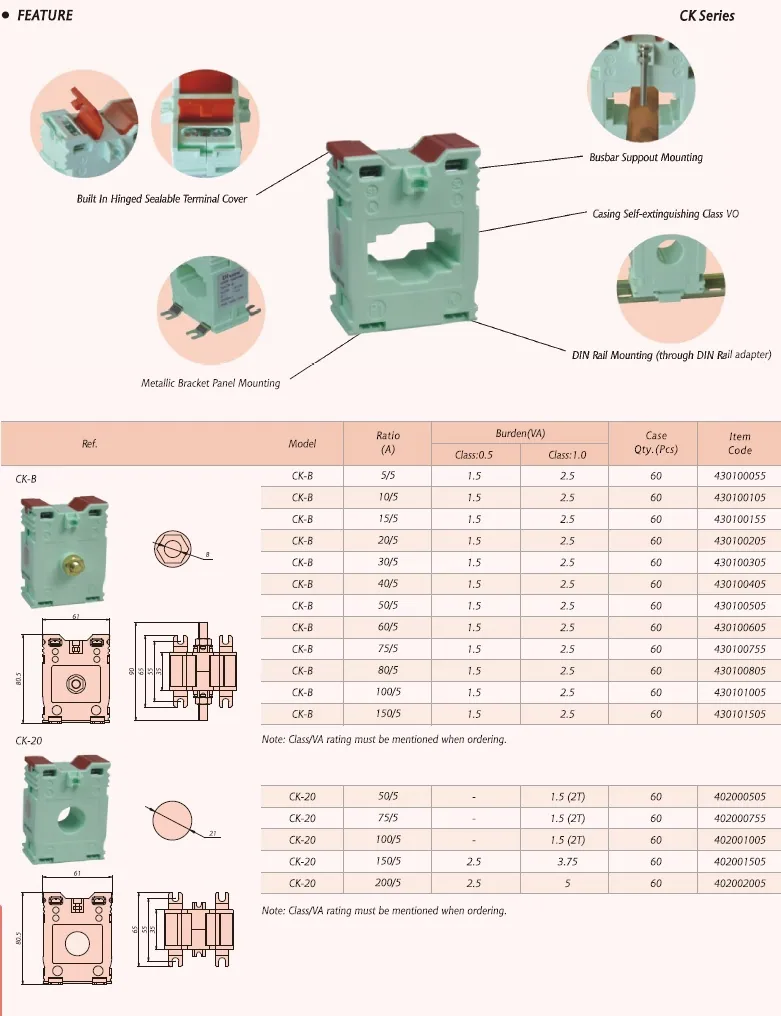

FEATURE

Three built in fixing methods:Side base; DIN rail;

Busbar mounting

Built in hinged terminal cover

Compact design

Primary current from 5A to 400A.

SPECIFICAIONS

Rated Frequency 50/60Hz

Rated test voltage 3kV AC. (1 min)

Rated short-time thermal current(Ith) 60In

Rated dynamic current, (Idyn) 2.5Ith

Rated voltage,(Um) 0.72Kv AC.

Continuous overload,(Id) 1.2In

Operating temperature -10℃~50℃

Housing self-extinguishing class VO

Safety factor FS 5

Secondary current 5A/1A
