CA Europe Hottest CT

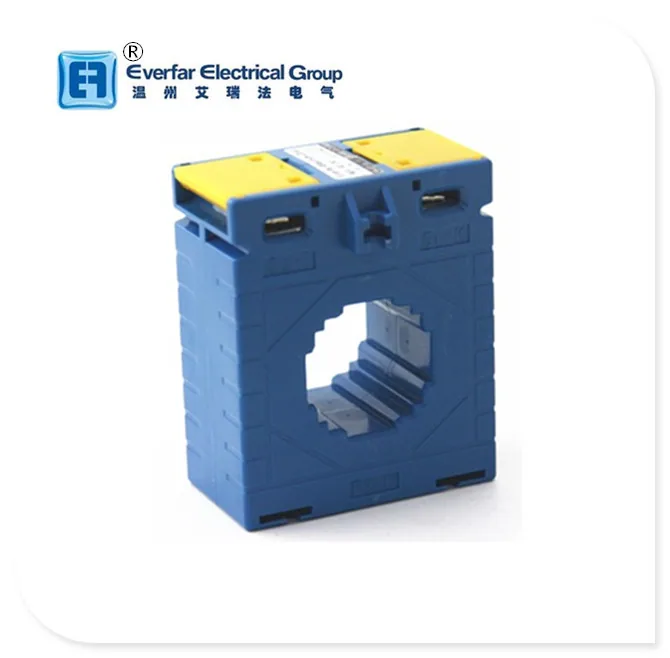

CA/MES -CURRENT TRANSFORMERS

• Fixing system: Busbar support mounting, metallic bracket panel mounting, by an accessory;

directly to cable by screws(the accessory and the screws are supplied together with the C.T.

MEASURING TRANSFORMERS

• A range of (12 frames) compact design plastic case current transformer.

It's volume is much smaller than general model, integral hinged plate terminal cover,

DIN rail mounting all makes this series CT match the requirements in space limited panels.

TRANSFORMERS ELECTROINC USE

• These transformers are used for measuring current from 5A to 4000A,second current 5A/1A, cl.1-cl.0.2s.

Busbar dimensions from 0mm to 30X100mm.

• FEATURE

Three built in fixing methods:Side base; DIN Rail; Busbar mounting ,Built in hinged terminal cover

Compact design

Primary current from 5A to 4000A.

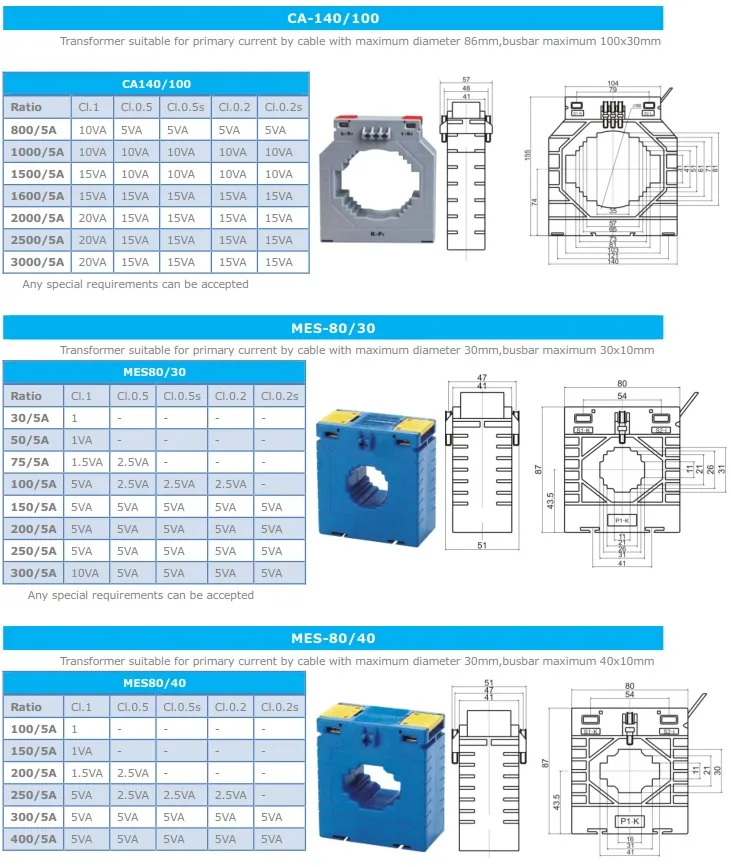

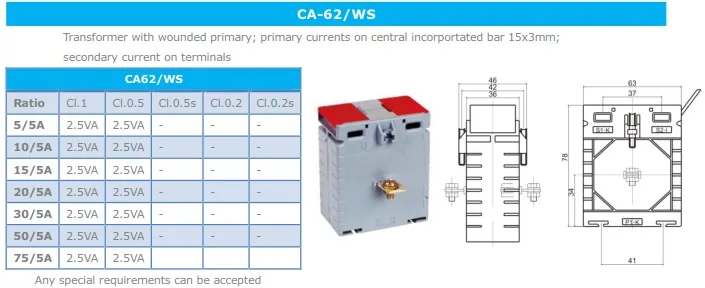

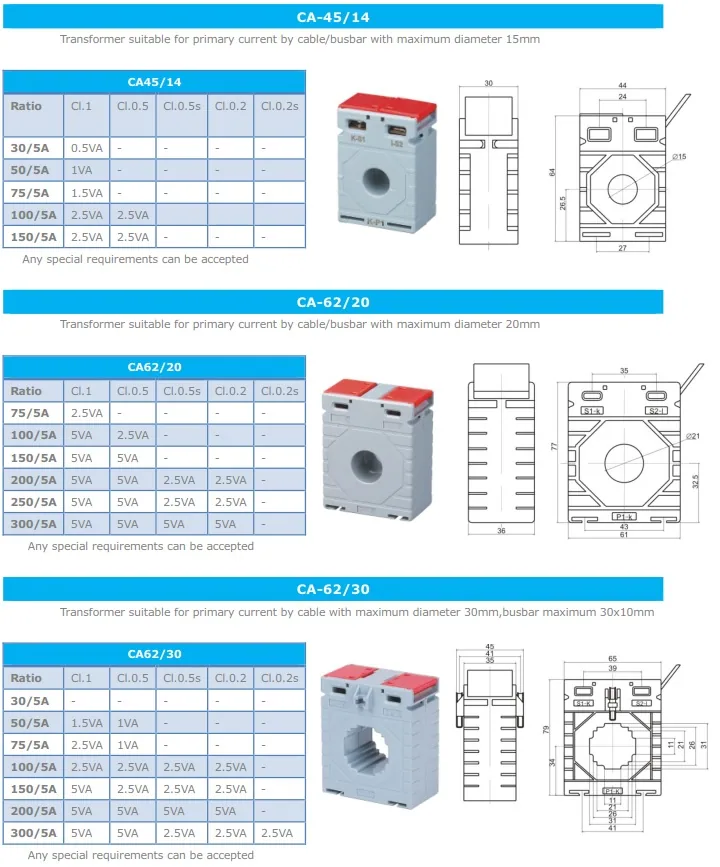

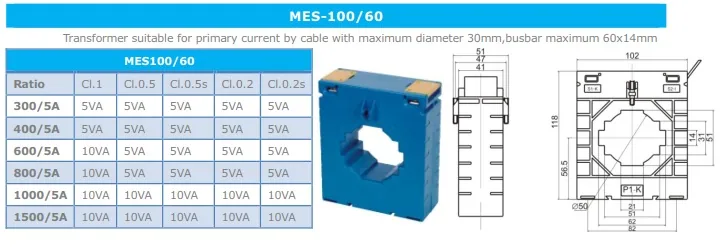

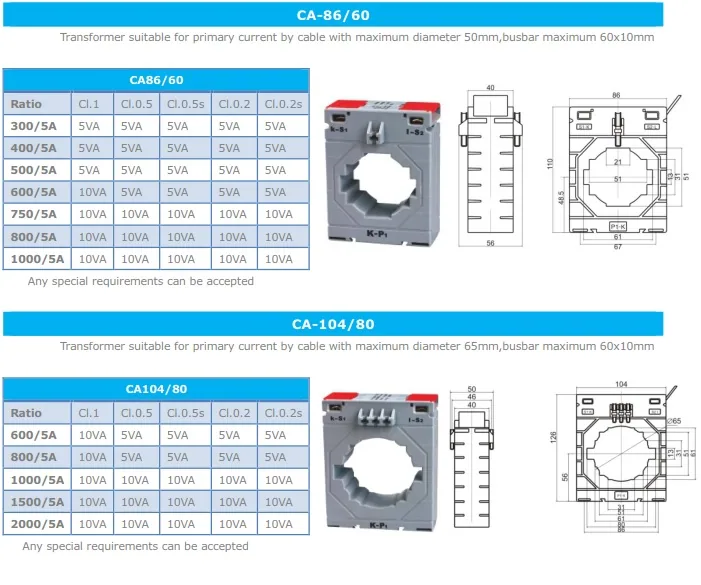

• SPECIFICAIONS

Rated Frequency 50/60Hz

Rated test voltage 3kV AC. (1 min)

Rated short-time thermal current(Ith) 60In

Rated dynamic current, (Idyn) 2.5Ith

Rated voltage,(Um) 0.72Kv AC.

Continuous overload,(Id) 1.2In

Operating temperature -10℃~50℃

Housing self-extinguishing class VO

Safety factor FS 5

Secondary current 5A/1A
