Moulded Housing CT
Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.
| Category | Current Transformers |
| Type | Moulded Housing CT |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
| Low voltage high accurace Plastic Case Current Transformers ABO-30 ·DESCRIPTION A new range (8 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy (up to Class 0.2S), humanization transparent cover and lead seal hole design makes the CT very easy to indentify after long term use and perfect anti-stealing electricity. ·FEATURE Built in hinged terminal cover Built in transparent cover for name plate Wide range accuracy (3, 1, 0.5, 0.5S, 0.2, 0.2S) enables meet the worldwide requirement. Primary current from 5A to 5000A . · SPECIFICAIONS Rated Frequency 50/ 60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current( Ith ) 60In Rated dynamic current, ( Idyn ) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10℃ ~ 50℃ Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A , 1A , 0.5A, 0.25A, 0.1A ABO series photos: ABO-B , ABO-30T , ABO-30 , ABO-30C , ABO-40 , ABO-60 , ABO-85 , ABO-100 , ABO-125 |
|---|

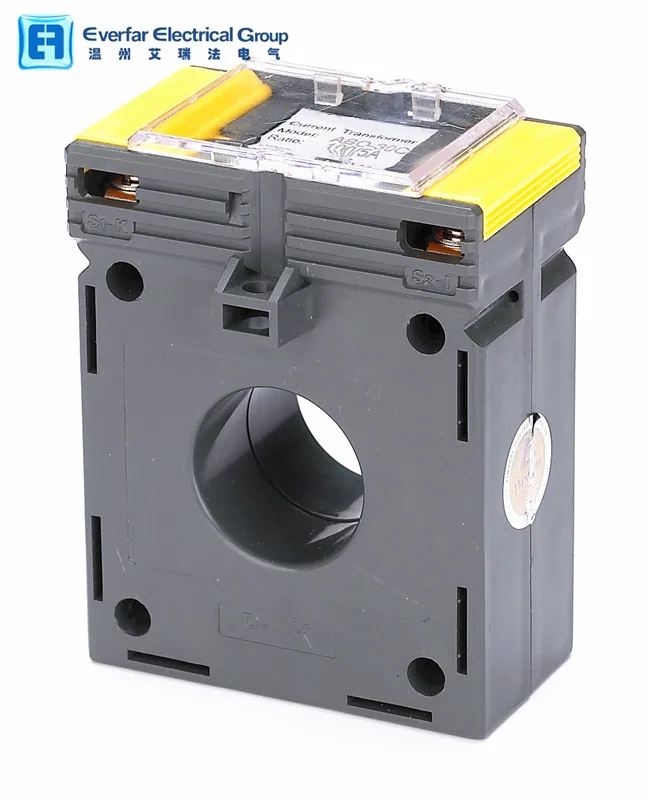

Low voltage high accurace Plastic Case Current Transformers ABO-30
A new range (8 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy (up to Class 0.2S), humanization transparent cover and lead seal hole design makes the CT very easy to indentify after long term use and perfect anti-stealing electricity.
Built in hinged terminal cover
Built in transparent cover for name plate
Wide range accuracy (3, 1, 0.5, 0.5S, 0.2, 0.2S) enables meet the worldwide requirement.
Primary current from 5A to 5000A.
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10℃~50℃
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A, 1A, 0.5A, 0.25A, 0.1A

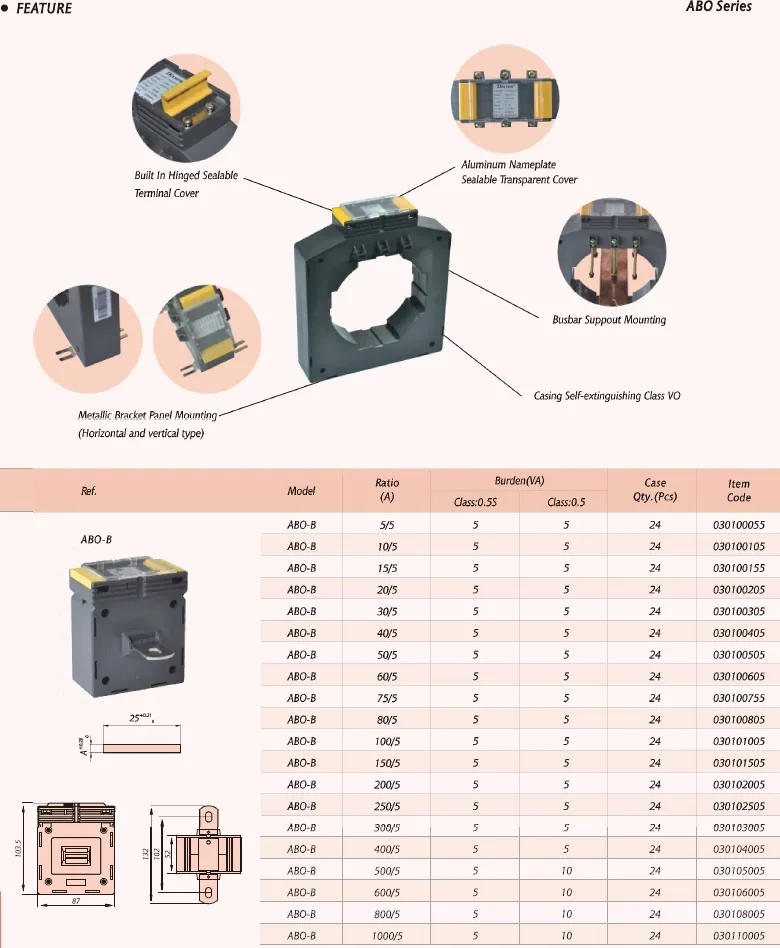

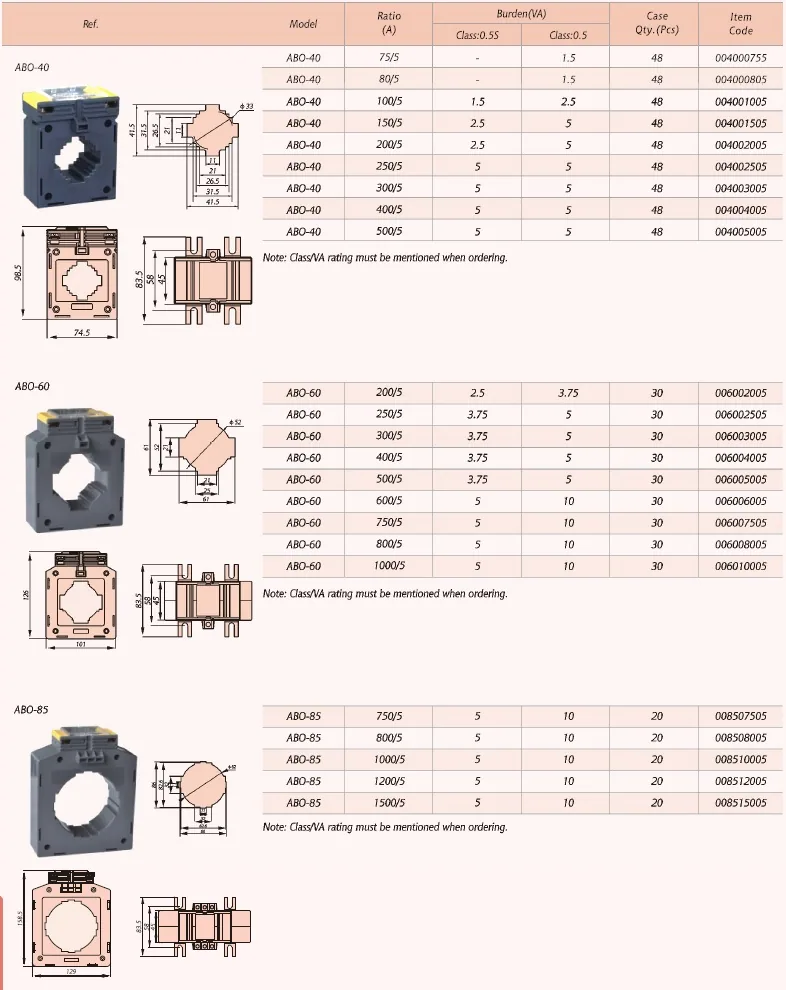

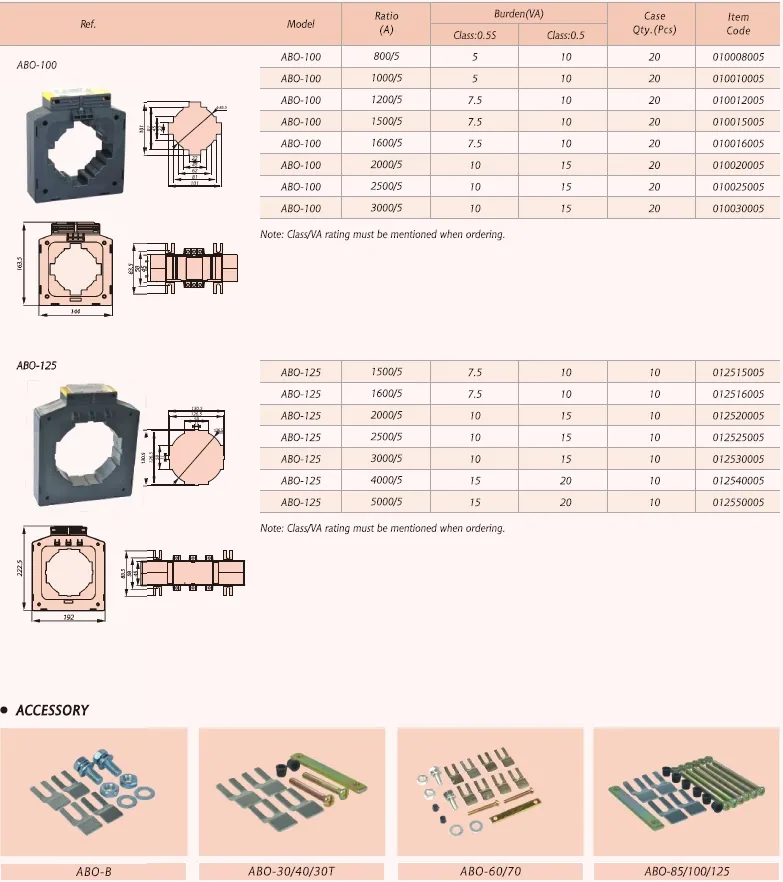

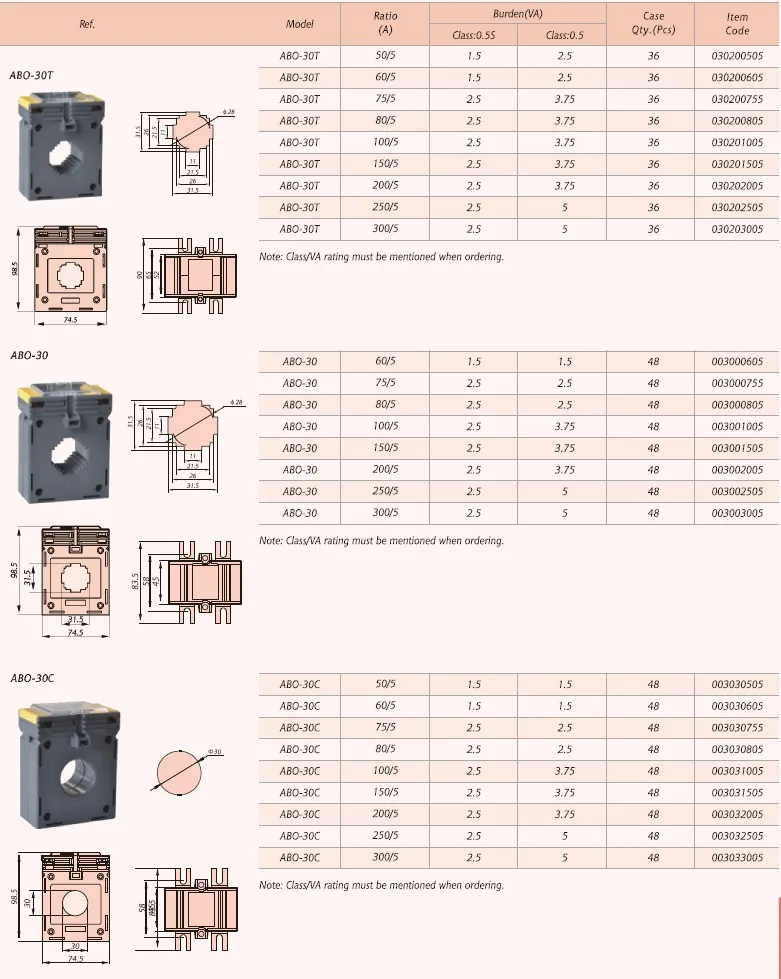

ABO-B, ABO-30T, ABO-30, ABO-30C, ABO-40, ABO-60, ABO-85, ABO-100, ABO-125
ABO High Accuracy CT.Exactly match Lovato(DM5T)
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
