Everfar Electrical Group Products

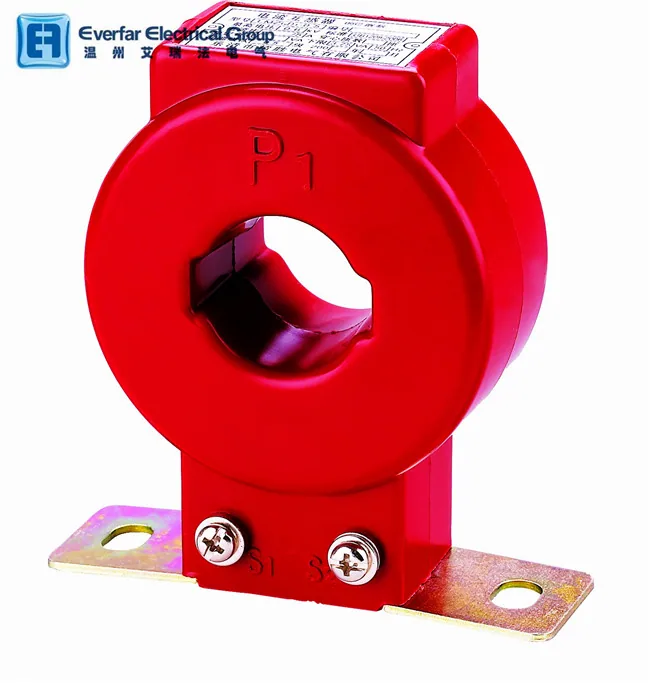

05-066KV Outdoor Resin - Current Transformers

Resin Housing CT

05-066KV Outdoor Resin

Moulded housing, resin housing, split core, ring type, mini, three phase, Rogowski coil, protection and residual current transformers.

CategoryCurrent Transformers
TypeResin Housing CT
ManufacturingOEM to customer design, ISO9001 and ISO14001

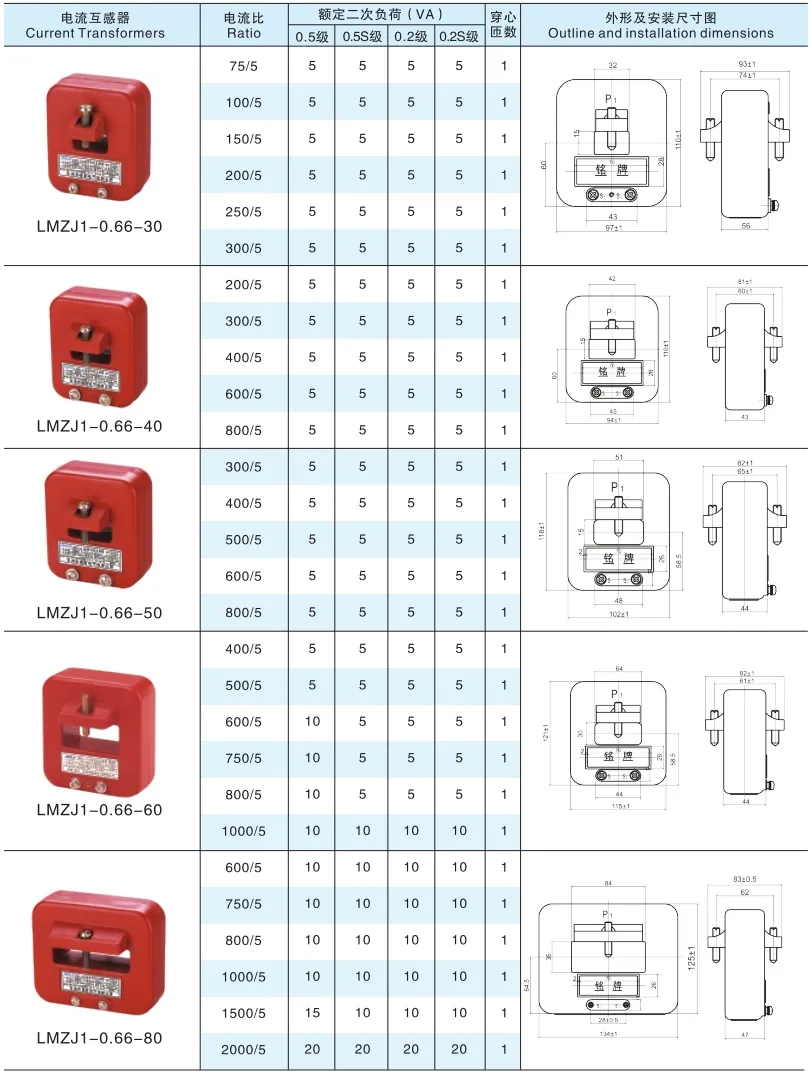

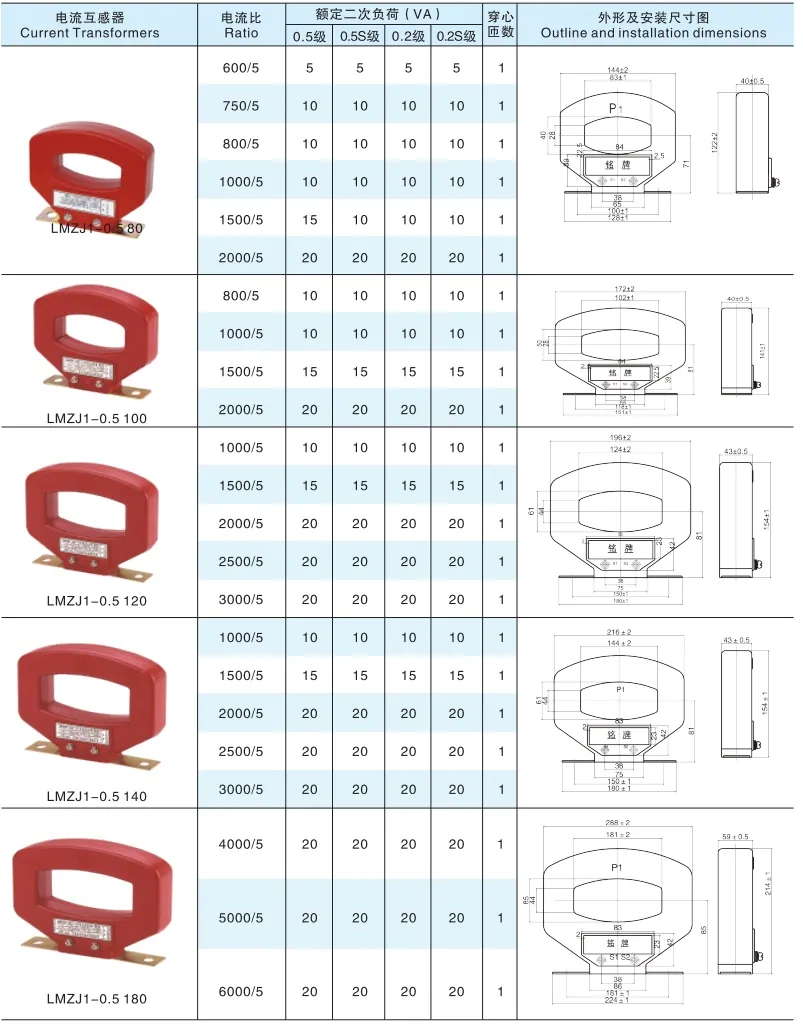

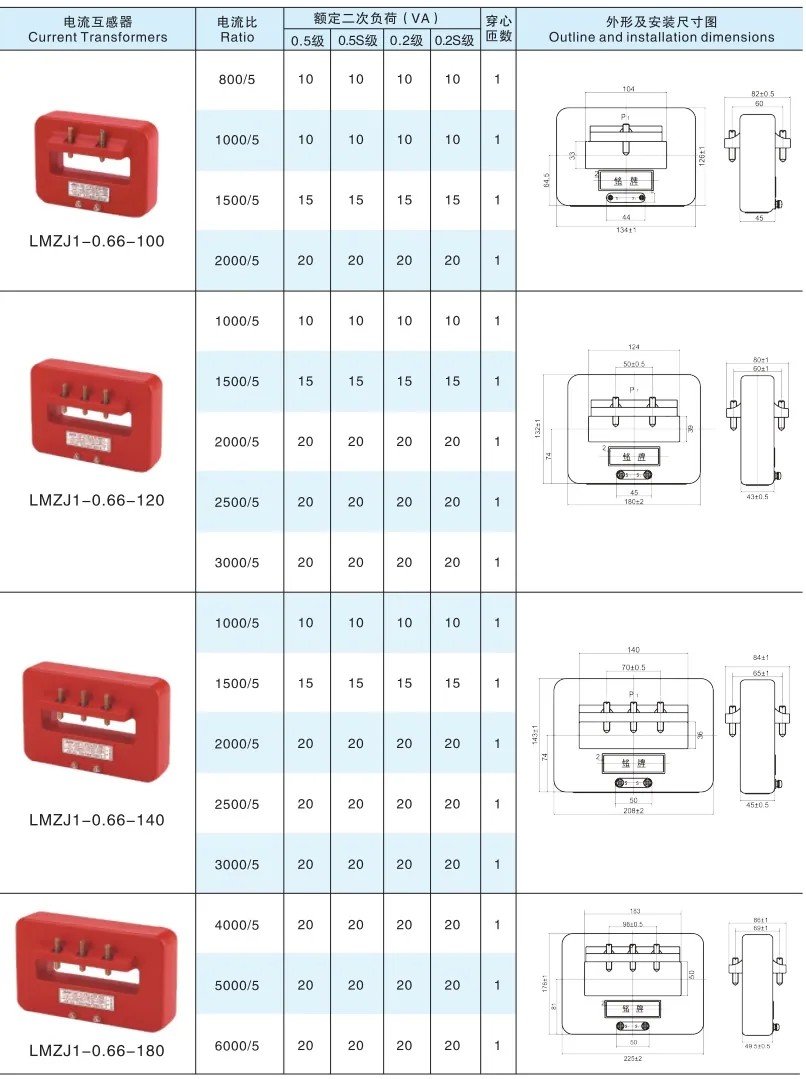

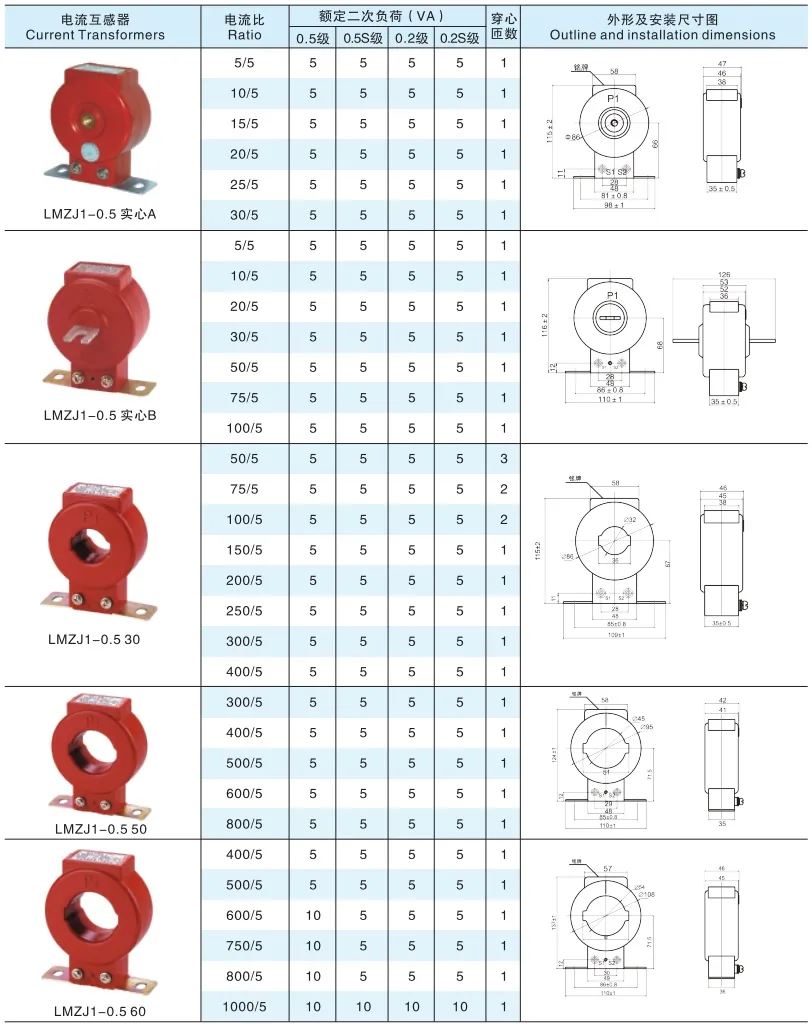

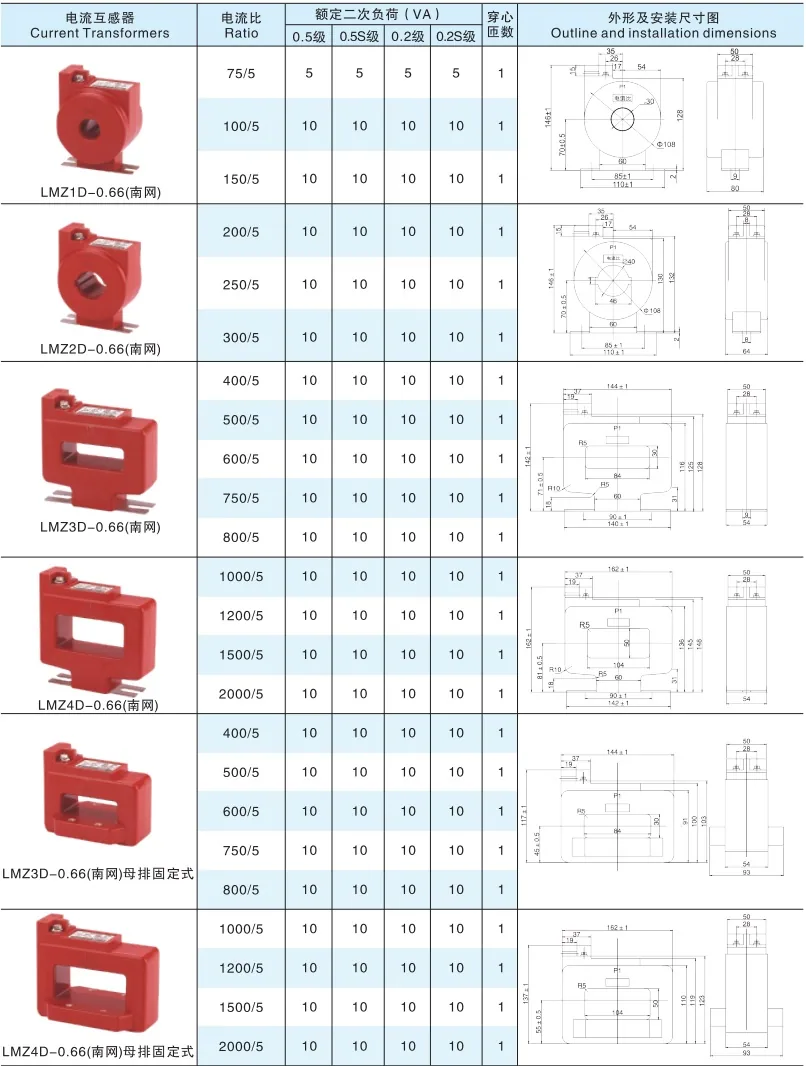

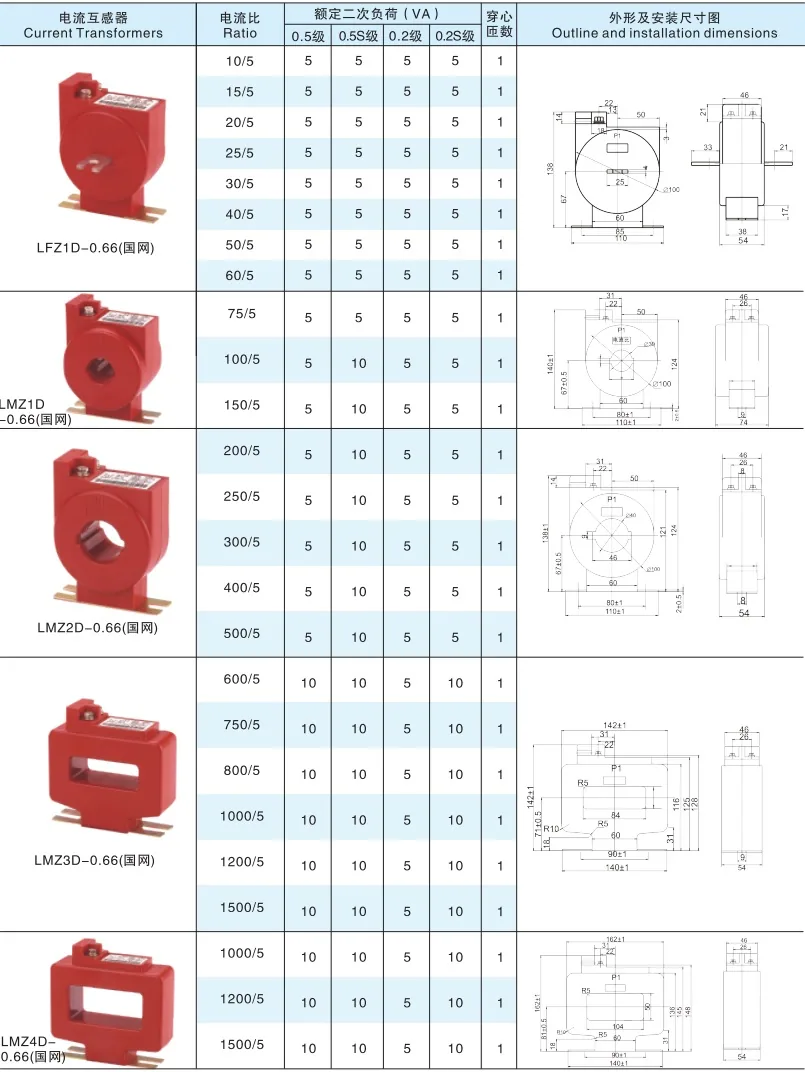

The specification and dimension drawings for this item are shown in the images above. Tell us the rating, the accuracy class and the quantity you need and our sales team will confirm the details and the price.

05-066KV Outdoor Resin specification05-066KV Outdoor Resin specification05-066KV Outdoor Resin specification05-066KV Outdoor Resin specification05-066KV Outdoor Resin specification05-066KV Outdoor Resin specification

Related Products

All Current Transformers

FAQ

Product FAQ

How do I ask for a quotation on this item?

Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.

Can this item be made to our own specification?

Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.

Which certifications are available?

Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.

Quote 05-066KV Outdoor Resin

Send the rating and the quantity and our sales team will confirm the price.
