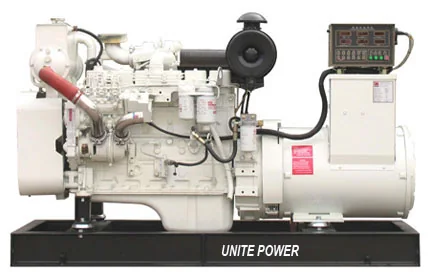

Marine Diesel Generator Set
Cummins, Perkins, Volvo, Doosan Daewoo, Deutz, MTU, Mitsubishi, Yanmar and Chinese engine gensets from 5 kVA to 3000 kVA, in open, soundproof, container and trailer configurations.
| Category | Diesel Generator Sets |
| Standard controller | Smartgen, other brands on request |
| Standard alternator | Stamford, other brands on request |
| Testing | No load, 50 %, 75 %, full load and 110 % load before shipment |
Cummins Marine Auxiliary generators are consist of marine engine, alternator and monitor system. The chosen engine is conformed to National Marine generator standard GB/T-13032-1991, RCB-JT01/2001 and CCS Standard. The Cummins marine engine and Stamford alternator are the standard configuration, and we can choose other brand alternator according to the requirements of customers
| Cummins main marine diesel genset(60HZ 1800RPM) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Genset | Rated Power | Standby Power | FC | Engine | Alternator | Dimension | G.W | |||||
| Model | kw | kva | kw | kva | (g/kw.h) | Model | No.of cylinder(mm) | Bore*stroke(mm) | Displacement(L) | Stamford | LxWxH(mm) | kg |
| CCFJ50J-Z | 50 | 63 | 55 | 69 | 211 | 4BTA3.9-GM65 | 4L | 102*120 | 3.9 | UCM224E | 1760x710x1160 | 1110 |
| CCFJ80J-Z | 80 | 100 | 88 | 110 | 212 | 6BT5.9-GM100 | 6L | 102*120 | 5.9 | UCM274C | 1870x800x1300 | 1190 |
| CCFJ100J-Z | 100 | 125 | 110 | 138 | 212 | 6BTA5.9-GM120 | 6L | 102*120 | 5.9 | UCM274D | 1870x800x1300 | 1270 |
| CCFJ110J-Z | 110 | 138 | 121 | 151 | 212 | 6CT8.3-GM129 | 6L | 114*135 | 8.3 | UCM274E | 2150x900x1400 | 2000 |
| CCFJ150J-Z | 150 | 188 | 165 | 206 | 209 | 6CTA8.3-GM175 | 6L | 114*135 | 8.3 | UCM274F | 2150x900x1400 | 2000 |
| CCFJ250J | 250 | 313 | 275 | 344 | 220 | NTA855-DM | 6L | 140*152 | 14 | HCM434D | 2910x955x1700 | 3800 |
| CCFJ280J | 280 | 350 | 308 | 385 | 220 | NTA855-DM | 6L | 140*152 | 14 | HCM434E | 2910x955x1700 | 4000 |
| CCFJ380J | 380 | 475 | 418 | 523 | 204 | K19-DM | 6L | 159*159 | 19 | HCM534C | 3190x920x1890 | 4250 |
| CCFJ450J | 450 | 563 | 495 | 619 | 203 | K19-DM | 6L | 159*159 | 19 | HCM534D | 3190x920x1890 | 4290 |
| CCFJ470J | 470 | 588 | 517 | 646 | 313 | K19-DM | 6L | 159*159 | 19 | HCM534D | 4100x1230x2330 | 7000 |
| CCFJ750J | 750 | 938 | 825 | 1031 | 214 | KTA38-DM1 | 12V | 159*159 | 38 | LVM634D | 4100x1230x2330 | 7250 |
| CCFJ900J | 900 | 1125 | 990 | 1238 | 213 | KTA38-DM1 | 12V | 159*159 | 38 | LVM634F | 4100x1230x2330 | 7300 |
| Cummins main marine diesel genset(50HZ 1500RPM). | ||||||||||||
| Genset | Rated Power | Standby Power | FC | Engine | Alternator | Dimension | G.W | |||||
| Model | kw | kva | kw | kva | (g/kw.h) | Model | No.of cylinder | Bore*stroke(mm) | Displacement(L) | Stamford | LxWxH(mm) | kg |
| CCFJ40J-Z | 40 | 50 | 44 | 55 | 211 | 4BTA3.9-GM47 | 4L | 102*120 | 3.9 | UCM224E | 1760x710x1160 | 1110 |
| CCFJ50J-Z | 50 | 63 | 55 | 69 | 210 | 6BT5.9-GM83 | 6L | 102*120 | 5.9 | UCM224F | 1870x800x1300 | 1190 |
| CCFJ64J-Z | 64 | 80 | 70 | 88 | 210 | 6BT5.9-GM83 | 6L | 102*120 | 5.9 | UCM274C | 1870x800x1300 | 1270 |
| CCFJ75J-Z | 75 | 94 | 83 | 103 | 210 | 6BT5.9-GM83 | 6L | 102*120 | 5.9 | UCM274C | 1870x800x1300 | 1500 |
| CCFJ90J-Z | 90 | 113 | 99 | 124 | 212 | 6BTA5.9-GM100 | 6L | 102*120 | 5.9 | UCM274D | 1870x800x1300 | 2000 |
| CCFJ100J-Z | 100 | 125 | 110 | 138 | 209 | 6CT8.3-GM115 | 6L | 114*135 | 8.3 | UCM274E | 2150x900x1400 | 2050 |
| CCFJ120J-Z | 120 | 150 | 132 | 165 | 209 | 6CTA8.3-GM155 | 6L | 114*135 | 8.3 | UCM274G | 2150x900x1400 | 2060 |
| CCFJ140J-Z | 140 | 175 | 154 | 193 | 209 | 6CTA8.3-GM155 | 6L | 114*135 | 8.3 | UCM274H | 2150x900x1400 | 2070 |
| CCFJ200J | 200 | 250 | 220 | 275 | 219 | NTA855-DM | 6L | 140*152 | 14 | HCM434D | 2910X956X1700 | 3680 |
| CCFJ250J | 250 | 313 | 275 | 344 | 219 | NTA855-DM | 6L | 140*152 | 14 | HCM434E | 2910X956X1700 | 3800 |
| CCFJ280J | 280 | 350 | 308 | 385 | 219 | NTA855-DM | 6L | 140*152 | 14 | HCM434F | 2910X956X1700 | 4000 |
| CCFJ300J | 300 | 375 | 330 | 413 | 209 | K19-DM | 6L | 159*159 | 19 | HCM534C | 3190x920x1890 | 4000 |
| CCFJ350J | 350 | 438 | 385 | 481 | 204 | K19-DM | 6L | 159*159 | 19 | HCM534D | 3190x920x1890 | 4100 |
| CCFJ400J | 400 | 500 | 440 | 550 | 203 | KTA19-DM | 6L | 159*159 | 19 | HCM534E | 3190x920x1890 | 4250 |
| CCFJ680J | 680 | 850 | 748 | 935 | 213 | KTA38-DM1 | 12V | 159*159 | 38 | LVM634E | 4100x1230x2330 | 6100 |
| CCFJ800J | 800 | 1000 | 880 | 1100 | 213 | KTA38-DM1 | 12V | 159*159 | 38 | LVM634F | 4100x1230x2330 | 7200 |
| Note: | ||||||||||||
| FC: fuel consumption; 50HZ standard voltage is 220v/380v;60HZ Standard voltage is 127v/220v, other type voltage also can be adjustable. | ||||||||||||
| We also have MWM-Deutz Marine genset from 150-1600kw, for more information, please contact us. | ||||||||||||
| The information provided in this catalog is subject to change without prior notice. | ||||||||||||
FAQ
The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.
Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.
Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.
Send the power, the frequency and the voltage and we will confirm the model and the price.
