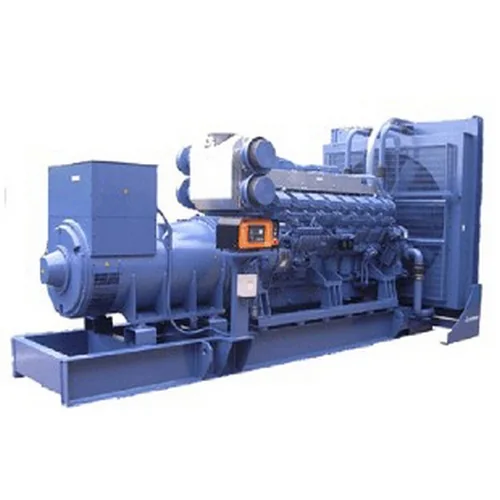

Mitsubishi diesel generator
Cummins, Perkins, Volvo, Doosan Daewoo, Deutz, MTU, Mitsubishi, Yanmar and Chinese engine gensets from 5 kVA to 3000 kVA, in open, soundproof, container and trailer configurations.
| Category | Diesel Generator Sets |
| Standard controller | Smartgen, other brands on request |
| Standard alternator | Stamford, other brands on request |
| Testing | No load, 50 %, 75 %, full load and 110 % load before shipment |
Japan Mitsubishi engine
Fast and reliable cool start
Mechanical governor
Space-saving and cost-effective installation
Comfort and high quality, quiet
50HZ 220V/380V ；230V/400V；240V/415V，etc
| Genset Model | prime power | standby power | Engine Model | Cyl | Displacement(L) | Weight(Kg) | Dimension(mm) | ||
|---|---|---|---|---|---|---|---|---|---|
| KVA | KW | KVA | KW | ||||||
| M7.5L | 6.7 | 5.4 | 7.5 | 6 | L3E | 3 | 0.95 | 406 | 1450*820*1125 |
| M11.5L | 10 | 8 | 11.5 | 9.2 | S3L2 | 3 | 1.3 | 468 | 1450*820*1125 |
| M16L | 15 | 12 | 16 | 12.8 | S4L2 | 4 | 1.75 | 505 | 1450*820*1125 |
| M22L | 20 | 16 | 22 | 17.6 | S4Q2 | 4 | 2.5 | 641 | 1700*896*1135 |
| M33L | 30 | 24 | 33 | 26 | S4S | 4 | 3.3 | 741 | 1700*896*1135 |
| M44L | 40 | 32 | 44 | 35 | S4S-DT | 4 | 3.3 | 850 | 1960*1050*1175 |
| M820L | 746 | 597 | 821 | 657 | S12A2-PTA | 12 | 33.93 | 5386 | 4080*1715*1985 |
| M1100L | 1000 | 800 | 1100 | 880 | S12H-PTA | 12 | 37.11 | 7669 | 4450*1645*2440 |
| M1400L | 1275 | 1020 | 1403 | 1122 | S12R-PTA | 12 | 49 | 9800 | 4680*1790*2495 |
| M1540L | 1400 | 1120 | 1540 | 1232 | S12R-PTA2 | 12 | 49 | 9800 | 4580*2085*2530 |
| M1650L | 1500 | 1200 | 1650 | 1320 | S12R-PTAA2 | 12 | 49 | 10500 | 5058*2210*2565 |
| M1900L | 1728 | 1382 | 1900 | 1520 | S16R-PTA | 16 | 65.37 | 13560 | 5330*2180*2565 |
| M2100L | 1900 | 1520 | 2090 | 1672 | S16R-PTA2 | 16 | 65.37 | 13600 | 5440*2170*2565 |
| M2250L | 2045 | 1636 | 2250 | 1800 | S16R-PTAA2 | 16 | 65.37 | 14700 | 5758*2210*2565 |
| M2500L | 2273 | 1818 | 2500 | 2000 | S16R2-PTAW | 16 | 79.9 | 18600 | 5980*2200*2555 |
If you need 60HZ Voltage request, please contact us for more information
FAQ
The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.
Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.
Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.
Send the power, the frequency and the voltage and we will confirm the model and the price.
