Deutz diesel generator set

50Hz Deutz Diesel Generator Set

Cummins, Perkins, Volvo, Doosan Daewoo, Deutz, MTU, Mitsubishi, Yanmar and Chinese engine gensets from 5 kVA to 3000 kVA, in open, soundproof, container and trailer configurations.

Category	Diesel Generator Sets
Standard controller	Smartgen, other brands on request
Standard alternator	Stamford, other brands on request
Testing	No load, 50 %, 75 %, full load and 110 % load before shipment

Get A Quote WhatsApp

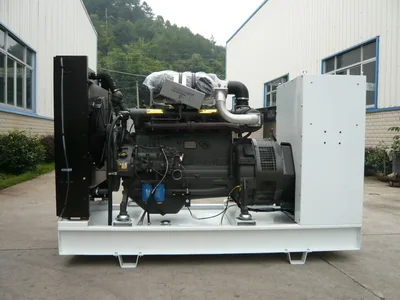

Germany Deutz Diesel Genset

Drive by Deutz Engine, it provides strong power, high torque and is easy to maintain and start with high reaction speed, wide application of electroinic speed controller, the variation of genset frequency form zero load to 100% is less than 1%, the performance is steady.and It is one-piece compact structure wit multiple internal vibration isolation small volume, reliable performance and long working life

Model	Prime Power		Standby Power		Fuel Consumption	Engine	No.of cylinder	Open Type			Soundproof Type	G.W(kg)	Fuel tank(L)
Model	kva	kw	kva	kw	L/H	Model	No.of cylinder	LxWxH(mm)	G.W(kg)	Fuel tank(L)	LxWxH(mm)	G.W(kg)	Fuel tank(L)
UD63	63	50	69	55	9.1	BF4M2012	4L	1880x690x1350	850	180	2852x1000x1380	2020	180
UD75	75	60	83	66	11.2	BF4M2012C	4L	1880x690x1350	950	180	2852x1000x1380	2040	180
UD88	88	70	96	77	12.6	BF4M1013E	4L	2100x850x1500	1350	250	3000x1100x1480	2110	250
UD100	100	80	110	88	14	BF4M1013EC	4L	2100x850x1500	1350	250	3245x1200x1700	2220	250
UD125	125	100	138	110	17.5	BF4M1013FC	4L	2450x900x1500	1500	250	3245x1200x1700	2330	250
UD150	150	120	165	132	21	BF6M1013EC	6L	2450x950x1600	1700	380	3300x1306x1825	3030	380
UD181	181	145	199	160	25.2	BF6M1013FCG2	6L	2450x950x1600	1800	380	3500x1300x1925	3130	380
UD200	200	160	220	176	28	BF6M1015FCG3	6L	2450x1000x1600	1900	380	3500x1300x1925	3330	380
UD225	225	180	248	198	32.2	BF6M1015-LA GA	6V	2600x1100x1700	2100	560	3700x1300x1925	3380	626
UD250	250	200	275	220	33.6	BF6M1015C-LA G1A	6V	2800x1100x1700	2800	560	3700x1520x2230	3530	626
UD288	288	230	316	253	39.2	BF6M1015C-LA G2A	6V	2800x1100x1700	3030	560	3700x1620x2230	4553	626
UD325	325	260	358	286	44.8	BF6M1015C-LA G3A	6V	2900x1250x1800	3030	560	3700x1620x2230	4600	626
UD350	350	280	385	308	49.7	BF6M1015C-LA G4	6V	3100x1500x2100	3450	560	3700x1620x2250	5200	626
UD375	375	300	413	330	53.9	BF6M1015CP-LA G	6V	3100x1500x2100	3800	560	3700x1620x2250	5500	626
UD438	438	350	481	385	60.2	BF8M1015C-LA G1A	8V	3300x1550x2100	4210	688	3700x1620x2250	6120	865
UD475	475	380	523	418	66.5	BF8M1015CP-LA G1A	8V	3500x1500x2200	4210	688	4310x1720x2450	6120	865
UD500	500	400	550	440	75.6	BF8M1015CP-LA G2	8V	3500x1500x2250	4210	688	4310x1720x2450	6225	865
UD538	538	430	591	473	81.2	BF8M1015CP-LA G4	8V	3500x1500x2250	4210	688	4310x1720x2450	6400	865
UD600	600	480	660	528	90.3	BF8M1015CP-LA G5	8V	3500x1500x2250	4210	688	4310x1720x2450	6700	865

Notes

The standard voltage is 220v/380v 3phase 4 wires, other type voltage is also adjustable,like 50HZ 415V,400V,etc
"S" stands for soundproof type, eg. UD63S
Smartgen brand control panel as one standard controller, other brand controller also available
Stamford alternator as standard alternator, but other brand alternator also availble, like leroysomer, marathon , etc

Related Products

All Diesel Generator Sets

5kW Diesel Generator Set

Chinese diesel generator set

Chinese Brand Diesel Generator Set

Chinese diesel generator set

Container Type Generator Set

Container Type generator

50Hz Cummins Diesel Generator Set

Cummins diesel generator set

FAQ

Product FAQ

What information do you need to quote this set?

The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.

Can the engine, alternator or controller brand be changed?

Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.

Is the set tested before shipment?

Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.
