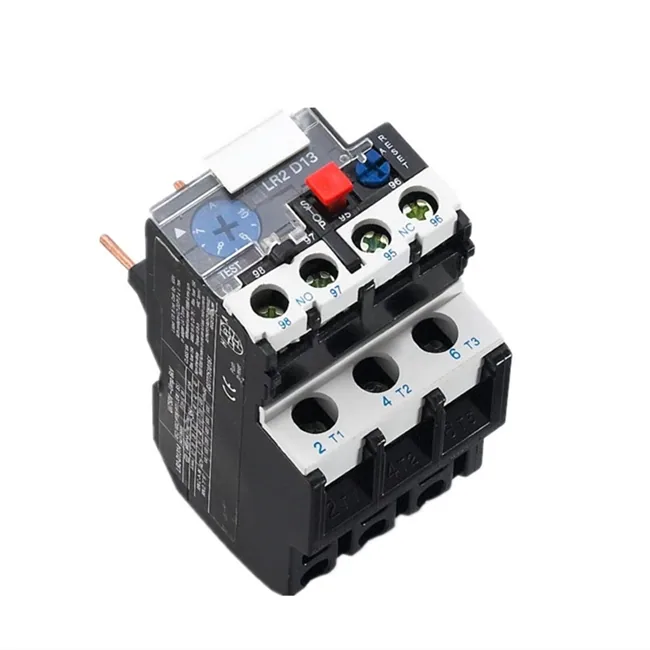

Thermal Relay
Intermediate, current, voltage, time, latching, level control, thermal and solid state relays, plus AFDD protection.
| Category | Industrial Relays |
| Type | Thermal Relay |
| Manufacturing | OEM to customer design, ISO9001 and ISO14001 |
Application
LRD series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-96A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in GLCI-D series AC contactor.
Auxiliary circuit
2 Rated insulation voltage 500V
| Model NO. | Rated working current | Thermal component | ||
|---|---|---|---|---|
| of thermal relay | Rated current(A) | Rated or scale of rated current (A) | ||
| LR2-D13 | 25 | LR2-D1301 | 0.2 | 0.10-0.16 |
| LR2-D1302 | 0.3 | 0.16-0.25 | ||
| LR2-D1303 | 0.4 | 0.25-0.40 | ||
| LR2-D1304 | 0.6 | 0.40-0.63 | ||
| LR2-D1305 | 1.0 | 0.63-1.0 | ||
| LR2-D1306 | 1.6 | 1.0-1.6 | ||
| LR2-D13X6 | 2.0 | 1.25-2.0 | ||
| LR2-D1307 | 2.5 | 1.6-2.5 | ||
| LR2-D1308 | 4.0 | 2.5-4.0 | ||
| LR2-D1310 | 6.0 | 4.0-6.0 | ||
| LR2-D1312 | 8.0 | 5.5-8.0 | ||
| LR2-D1314 | 10.0 | 7.0-10.0 | ||
| LR2-D1316 | 13.0 | 9.0-13.0 | ||
| LR2-D1321 | 18.0 | 12.0-18.0 | ||
| LR2-D1322 | 25.0 | 17.0-25.0 | ||
| LR2-D23 | 36 | LR2-D2353 | 32.0 | 23.0-32.0 |
| LR2-D2355 | 36.0 | 28.0-36.0 | ||
| LR2-D33 | 93 | LR2-D3353 | 32.0 | 23.0-32.0 |
| LR2-D3355 | 40.0 | 30.0-40.0 | ||
| LR2-D3357 | 50.0 | 37.0-50.0 | ||
| LR2-D3359 | 65.0 | 48.0-65.0 | ||
| LR2-D3361 | 70.0 | 55.0-70.0 | ||
| LR2-D3363 | 90.0 | 63.0-80.0 | ||
| LR2-D3365 | 93.0 | 80.0-93.0 | ||
FAQ
Email [email protected] with the product name, the rating and the accuracy class you need and the quantity.
Yes. Everfar is distinguished by OEM manufacture and develops customers' designs.
Everfar is qualified to ISO9001 and ISO14001, and holds product certificates including CE, UL and KEMA.
Send the rating and the quantity and our sales team will confirm the price.
