SC/UPC Pigtail

Fiber Optic Patch Cord

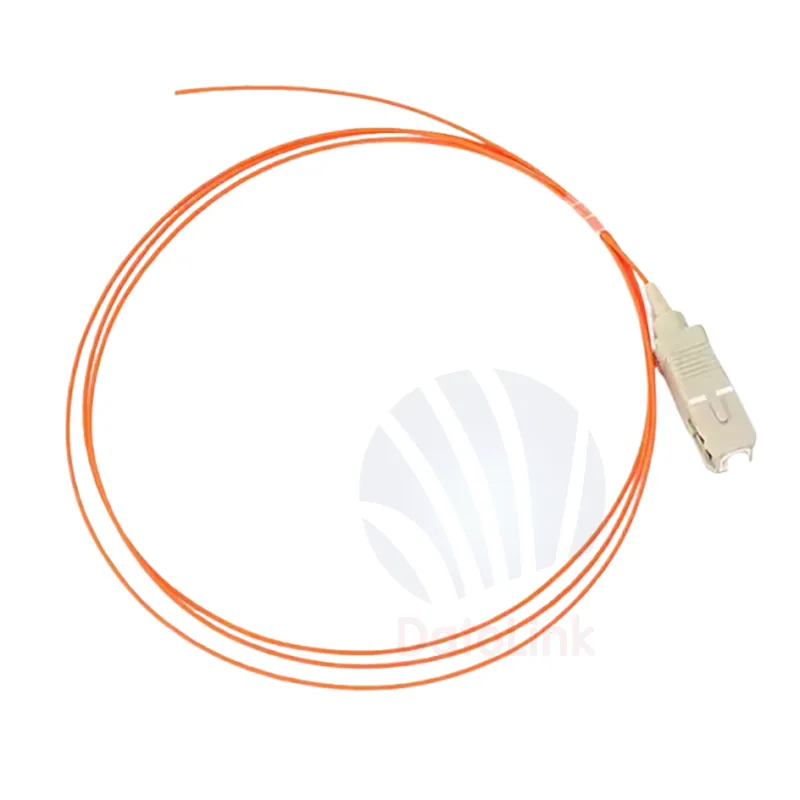

SC/UPC Pigtail

SC stands for Subscriber Connector- a general purpose push/pull style Connector developed by NTT. SC has an advantage in keyed duplexibility to support send/receive channels.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Patch Cord

Feature

1.The connector corresponds to the international standard IEC 874-10 and Telcordia-GR-326-core.
2.The insertion loss is below 0.3db.
3.100% test before shipping.
4.OM1 62.5/125μm ，OM2 50/125μm.
5.Custom connector and length is available.
6.Different fiber diameter for option: 0.9mm, 2.0mm or 3.0mm.
7.LSZH, OFNP,PVC jacket are available.



Description:

This is a high-quality multimode, OM1, 62.5/125 fiber optic pigtail with SC/UPC connectors. Fiber optic pigtails are ideal for fusion splicing. These pigtails provide the optical performance, sturdiness, and repeatability required for modern network applications by combining quality zirconia ferrules with tough composite hardware. They are quality tested to ensure they meet or exceed industry standards while adhering to only the most stringent performance specifications.

simplex and duplex fiber pigtails are available with different fiber counts (commonly 1, 6 and 12) and come in various colors. Our fiber optic pigtails are available with LC, SC, FC, and ST connectors with a typical 0.9mm outer diameter cable. We also offer jacketed and unjacketed types.



Connector A LC/SC/FC/ST/E2/MU/MTRJ Connector B LC/SC/FC/ST/E2/MU/MTRJ
Fiber Count Simplex/DupleX Fiber Grade SM/0M1/2/3/4/5
Fiber Mode 9/125 &50/125 &62.5/125 Wavelength 1310/1550& 850/1300
Polarity A (Tx) to B (Rx) Cable Type Easy Strip
Cable Outside Diameter(0D) 1.2mm-3.0mm Cable Jacket PVC/LSZH/QFNR/OFNR
Min. Bend Radius
(0ptical Fiber)		 10.mm/7.5mm Min. Bend Radius
(Fiber Cable)		 10/5D &20/10D(Dynamic/static)
Insertion Loss ≤0.3dB Return Loss ≥50db/>30db
Operating Temperature -20 to 70°C (-4 to 158°F) Storage Temperature -40 to 80°C (-40 to 176°F)



Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
