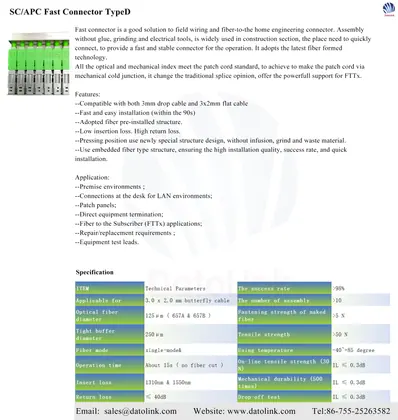

SC/APC Fast Connector TypeD

Fast Connector

SC/APC Fast Connector TypeD

This type of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy. The Connector is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fast Connector

Description

Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Features：

quickly assembly connetor
high return loss,low insert
cost effective portable
install quickly
reliable and superior optical performance

ITEM Technical Parameters
Applicable for 3.0 x 2.0 mm butterfly cable
Optical fiber diameter 125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode single-mode&
Operation time About 15s ( no fiber cut )
Insert loss 1310nm & 1550nm
Return loss ≤ 40dB
The success rate >98%
The number of assembly >10
Fastening strength of naked fiber >5 N
Tensile strength >50 N
Using temperature -40~+85 degree
On-line tensile strength (30 N) IL ≤ 0.3dB
Mechanical durability (500 times) IL ≤ 0.3dB
Drop-off test IL ≤ 0.3dB

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
