MTRJ Adaptor

Fiber Optic Adaptor&Attenuator

MTRJ Adaptor

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Adaptor&Attenuator

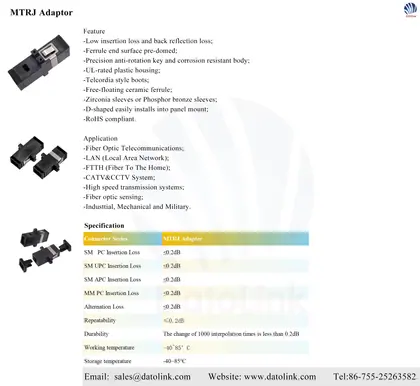

Feature：

-Low insertion loss and back reflection loss;
-Ferrule end surface pre-domed;
-Precision anti-rotation key and corrosion resistant body;
-UL-rated plastic housing;
-Telcordia style boots;
-Free-floating ceramic ferrule;
-Zirconia sleeves or Phosphor bronze sleeves;
-D-shaped easily installs into panel mount;
-RoHS compliant.

Application：

-Fiber Optic Telecommunications;
-LAN (Local Area Network);
-FTTH (Fiber To The Home);
-CATV&CCTV System;
-High speed transmission systems;
-Fiber optic sensing;
-Industtial, Mechanical and Military.

Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.



Connector Series MTRJ Adapter
SM PC Insertion Loss ≤0.2dB
SM UPC Insertion Loss ≤0.2dB
SM APC Insertion Loss ≤0.2dB
MM PC Insertion Loss ≤0.2dB
Alternation Loss ≤0.2dB
Repeatability ≤0.2dB
Durability The change of 1000 interpolation times is less than 0.2dB
Working temperature -40~85°C
Storage temperature -40~85°C

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all Fiber Optic Adaptor&Attenuator
ST Adiustable AttenuatorST Adiustable AttenuatorFiber Optic Adaptor&AttenuatorSC Adjustable AttenuatorSC Adjustable AttenuatorFiber Optic Adaptor&AttenuatorLC Adjustable AttenuatorLC Adjustable AttenuatorFiber Optic Adaptor&AttenuatorFC Adjustable AttenuatorFC Adjustable AttenuatorFiber Optic Adaptor&AttenuatorE2000/UPC Fiber Optical AttenuatorE2000/UPC Fiber Optical AttenuatorFiber Optic Adaptor&AttenuatorSC APC Fiber Optical AttenuatorSC APC Fiber Optical AttenuatorFiber Optic Adaptor&AttenuatorE2000 Fiber Optical AttenuatorE2000 Fiber Optical AttenuatorFiber Optic Adaptor&AttenuatorMU Fiber Optical AttenuatorMU Fiber Optical AttenuatorFiber Optic Adaptor&Attenuator

Ordering MTRJ Adaptor

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of MTRJ Adaptor before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to MTRJ Adaptor?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For MTRJ Adaptor?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
