MPO/UPC-LC/UPC-SM-24

MTP/MPO Trunk Cables

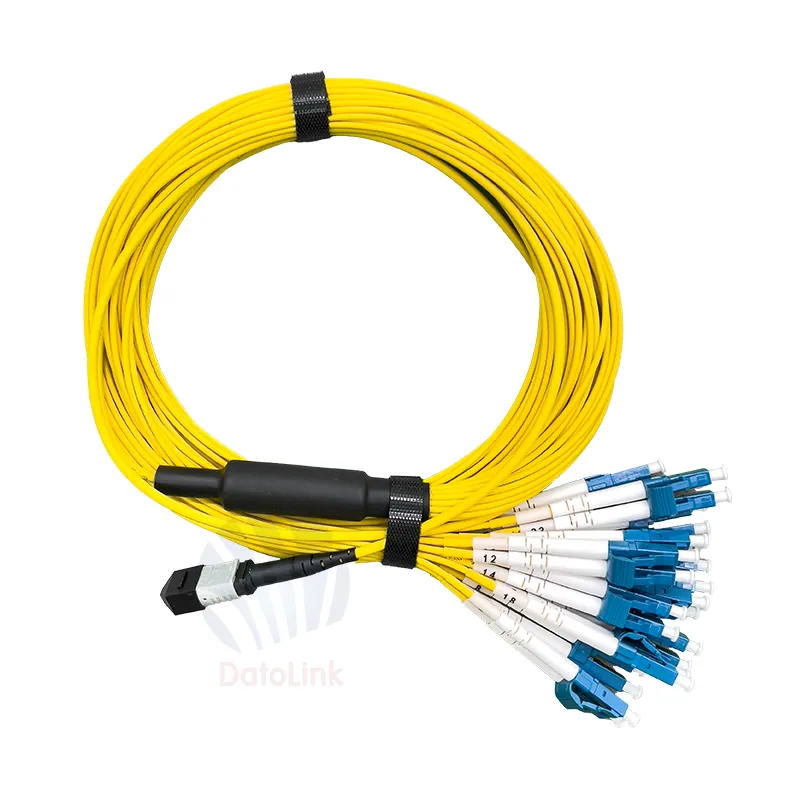

MPO/UPC-LC/UPC-SM-24

The MPO Breakout cable is an economical solution for a smaller network environment in which you don’t need complicated equipment, because the MPO cable allows redistribution of various fibers into one round cable for short distance transmission, it offers 8, 12, 24 and up to 144 fibers for these applications.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

MTP/MPO Trunk Cables

Features

1. Factory-terminated provide consistent quality, high performance and reduce installation time
2. 100% tested for low insertion loss performance and high return loss
3. MPO Female to 6 x LC duplex harness cable
4. Save Time & Space
5. Laser-Optimized multimode OM3 fiber
6. Optimized performance – available in elite MTP and discrete premium connector
7. Comply with IEC 61754-7, TIA/EIA 604-5, Telcordia GR-1435-CORE and RoHS
8. LSZH Jacket by Default

Application

  • Data Centre Infrastructure
  • Storage Area Network- Fibre Channel
  • Parallel Optics
  • Infiniband
  • Emerging 40 and 100Gbps Protocols





Connector A MPO
Connector B SC or LC ST FC Connector
Fiber Count 8 Fibers, 12Fibers & 24Fibers & 48Fibers for option
Polish Type APC or UPC
Jacket Color Yellow
Return Loss >65db
Insertion Loss <0.3db
Jaket Material PVC, LSZH

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all MTP/MPO Trunk Cables
MPO/UPC-LC/UPC-OM3-24MPO/UPC-LC/UPC-OM3-24MTP/MPO Trunk CablesMPO/UPC-LC/UPC-OM4-8MPO/UPC-LC/UPC-OM4-8MTP/MPO Trunk CablesMPO/UPC-LC/UPC-OM3-12MPO/UPC-LC/UPC-OM3-12MTP/MPO Trunk CablesLGX Type PLC Splitter 1×16LGX Type PLC Splitter 1×16ABS Box Type Plc SplitterLGX Type PLC Splitter 1×2LGX Type PLC Splitter 1×2ABS Box Type Plc SplitterLGX Type PLC Splitter 1*8LGX Type PLC Splitter 1*8ABS Box Type Plc SplitterLGX Type PLC Splitter 1*4LGX Type PLC Splitter 1*4ABS Box Type Plc SplitterL925B Mechanical spliceL925B Mechanical spliceFast Connector

Ordering MPO/UPC-LC/UPC-SM-24

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of MPO/UPC-LC/UPC-SM-24 before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to MPO/UPC-LC/UPC-SM-24?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For MPO/UPC-LC/UPC-SM-24?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
