MPO Cassettes

MPO Rack

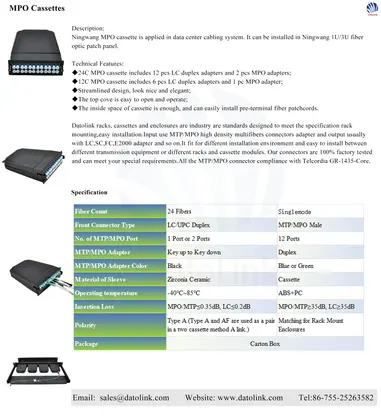

MPO Cassettes

Datolink racks, cassettes and enclosures are industry are standards designed to meet the specification rack mounting,easy installation.Input use MTP/MPO high density multifibers connectors adapter and output usually with LC,SC,FC,E2000 adapter and so on.It fit for different installation environment and easy to install between different transmission equipment or different racks and cassette modules. Our connectors are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with Telcordia GR-1435-Core.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

MPO Rack

Features

  • Standard 1U ~ 4U racks
  • 100% tested before delivery
  • MTP And MPO available
  • Use 12/24 Cores Fiber Connector and adapter
  • Counts usually 12 / 24 / 36 / 48 / 72 /96 / 144-fibers
  • Standard LGX racks available or customized
  • SM/OM1/OM2/OM3/OM4 or Customized
  • LSZH, OFNR, OFNP available
  • Compliance with Telcordia GR-1435-Core Compliant



Fiber Count 24 Fibers Fiber Type Singlemode
Front Connector Type LC/UPC Duplex Rear Connector Type MTP/MPO Male
No. of MTP/MPO Port 1 Port or 2 Ports No. of LC Port 12 Ports
MTP/MPO Adapter Key up to Key down LC Adapter Duplex
MTP/MPO Adapter Color Black LC Adapter Color Blue or Green
Material of Sleeve Zirconia Ceramic Housing Type Cassette
Operating temperature -40℃~85℃ Material of Cassette Body ABS+PC
Insertion Loss MPO/MTP≤0.35dB, LC≤0.2dB Return Loss MPO/MTP≥35dB, LC≥35dB
Polarity Type A (Type A and AF are used as a pair in a two cassette method A link.) Application Matching for Rack Mount Enclosures
Package Carton Box



Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.

Related Products

View all MPO Rack
MPO-LCMPO-LCMPO RackMPO 2UMPO 2UMPO RackMPO 1U 144MPO 1U 144MPO RackLGX Type PLC Splitter 1×16LGX Type PLC Splitter 1×16ABS Box Type Plc SplitterLGX Type PLC Splitter 1×2LGX Type PLC Splitter 1×2ABS Box Type Plc SplitterLGX Type PLC Splitter 1*8LGX Type PLC Splitter 1*8ABS Box Type Plc SplitterLGX Type PLC Splitter 1*4LGX Type PLC Splitter 1*4ABS Box Type Plc SplitterL925B Mechanical spliceL925B Mechanical spliceFast Connector

Ordering MPO Cassettes

Is Datolink a manufacturer or a trading company?
Datolink is a manufacturer based in Shenzhen, China. The company was officially founded in January 2013 and holds its own import and export licence. Production covers fiber optic patch cords, pigtails, adaptors, connectors, PLC splitters and fast connectors, alongside fiber test equipment and structured cabling components.
Can I order a sample of MPO Cassettes before placing a bulk order?
Yes. Samples below USD 10 are available with the freight paid by the customer, and sample orders below USD 50 are accepted. That sample value is credited as a discount against the formal order.
What is the lead time and how do I place an order?
Send a list of the products you need by email or WhatsApp, including quantity and description. Datolink replies with a proforma invoice and bank details. Delivery time is generally 5 working days after payment is received.
Which payment and delivery terms do you accept?
Delivery terms: FOB, CFR, CIF, EXW and FCA. Payment methods: T/T, Alibaba, PayPal, Western Union and cash. Payment currencies: USD, EUR and CNY.
What warranty applies to MPO Cassettes?
Datolink offers 12 months on fiber optic passive products. All exported products comply with international quality and safety standards. If a quality complaint arises, contact the sales team with the details; defective samples may be requested for further evaluation and testing.
Do you accept OEM and ODM orders and small quantities?
Yes. OEM and ODM orders are welcome, and small orders are accepted. Pricing is quantity based, so a larger quantity gives a better unit price.
How will the goods be shipped?
For orders under 50 kg, express couriers such as DHL, TNT, UPS and FedEx are normally used. For bulk orders, sea freight is more economical but takes longer. If you have your own forwarder in China, Datolink can deliver to your agent.

Need A Quotation For MPO Cassettes?

Send the model, quantity and connector type. The Datolink sales team replies within 12 to 24 hours on working days.
