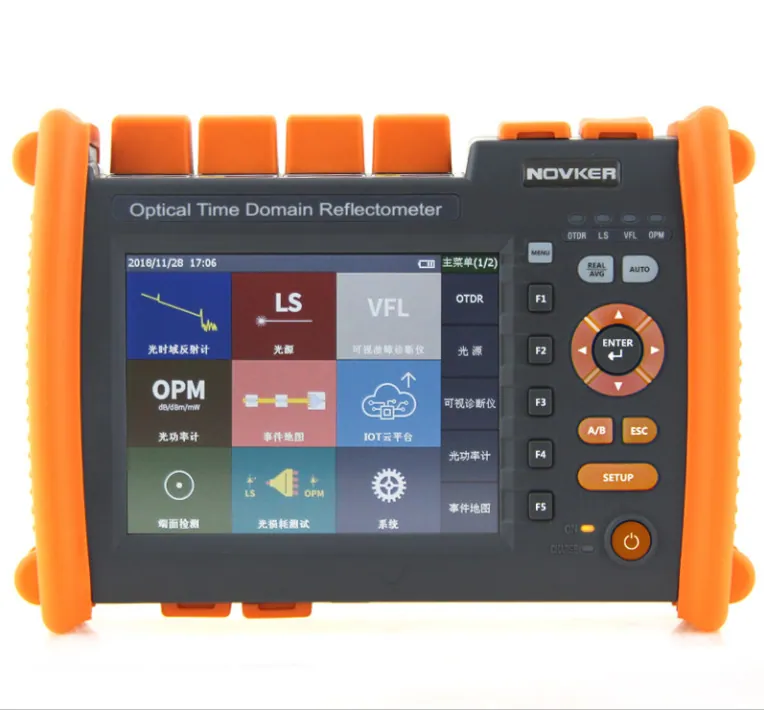

Handheld Machine Tester OTDR-NK5600
NK5600 multi-functional OTDR adopts 5.6 inch color touch screen and double operation of keys and touch. It integrates of OTDR, Visual Fault Location, Event Map, Optical Power Meter, Light Source, multi-functions to help customers efficiently solve the field test and maintenance;Intelligent power management, 20 hours of super long standby, efficient guarantee of field test and maintenance. It is mainly used to measure the length, loss, connection quality and other parameters of all kinds of optical fiber and cable. It can be widely used in engineering construction, line maintenance test and emergency repair of communication system of optical fiber communication system, research and production measurement of optical fiber cable.
- Brand
- Datolink
- Manufactured in
- Shenzhen, Guangdong, China
- Warranty
- 12 months
- OEM and ODM
- Accepted
Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.
Function:
0.8m event blind area, easy to test 5m jumper
One button automatic test
Detection of online test, automatic alarm with light
Standard SOR file output format
Unique automatic diagnosis function of test results
Multi wavelengths simultaneous test
Batch processing of data and printing report forms
Nomenclature in Chinese and English
Key + touch screen dual operation mode
Ultra wide operating temperature
Technical Parameter:
| Model | NK5600 | ||||||
| Type | G.652SM | ||||||
| Wavelength | 1310/1500±20nm 1550nm±20nm | ||||||
| Dynamic Range | 32dB/30dB | ||||||
| Event Blind Zone | 1m | ||||||
| ATT Blind Zone | 6m | ||||||
| Test Range | 500m/1km/2km/4km/8km/16km/32km/64km | ||||||
| Pulse Width | 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1μs/2μs/3μs/5μs/8μs/10μs | ||||||
| Ranging Accuracy | ±（1m+Sample interval+0.005％×Test distance） | ||||||
| Sample Points | 16k-128k | ||||||
| Sample Resolution | 0.05m~8m | ||||||
| Loss Resolutin | 0.001dB | ||||||
| Loss Threshold | 0.20dB | ||||||
| Range Resolution | 0.001m | ||||||
| Reflection Accuracy | ±3dB | ||||||
| File Format | SOR Standard File Format | ||||||
| Loss Analysis | 4 point method/5 point method | ||||||
| Laser Safety Level | Class II | ||||||
| Connector | FC/UPC(Interchangeable SC ST) | ||||||
