GPJ-(04)5B Horizontal Type Fiber Optic Splice Closure

Fiber Optic Splice Closure

GPJ-(04)5B Horizontal Type Fiber Optic Splice Closure

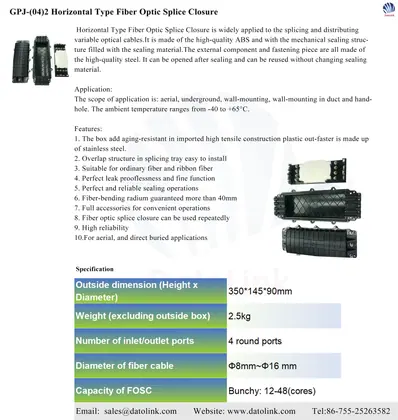

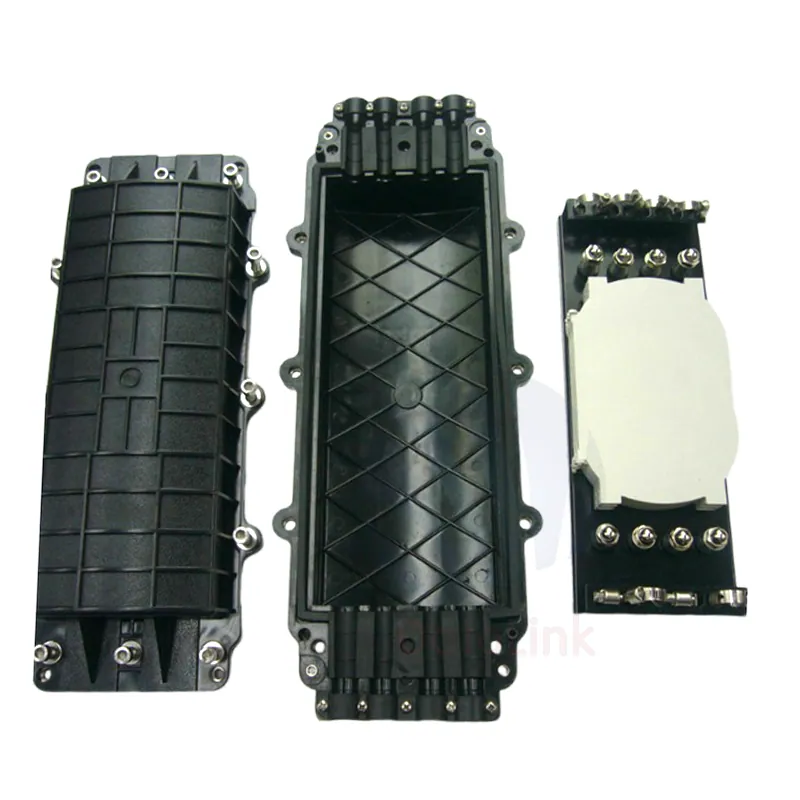

Horizontal Type Fiber Optic Splice Closure is widely applied to the splicing and distributing variable optical cables.It is made of the high-quality ABS and with the mechanical sealing structure filled with the sealing material.The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing and can be reused without changing sealing material.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Splice Closure

Application

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole. The ambient temperature ranges from -40 to +65°C.

Features

1. The box add aging-resistant in imported high tensile construction plastic out-faster is made up of stainless steel.
2. Overlap structure in splicing tray easy to install
3. Suitable for ordinary fiber and ribbon fiber
4. Perfect leak prooflessness and fine function
5. Perfect and reliable sealing operations
6. Fiber-bending radium guaranteed more than 40mm
7. Full accessories for convenient operations
8. Fiber optic splice closure can be used repeatedly
9. High reliability
10.For aerial, and direct buried applications

Technical Parameter

Outside dimension (Height x Diameter) 350*145*90mm
Weight (excluding outside box) 2.5kg
Number of inlet/outlet ports 4 round ports
Diameter of fiber cable Φ8mm~Φ16 mm
Capacity of FOSC Bunchy: 12-48(cores)

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
