FTTH Optical Fiber Fusion Splicer KL-300T

Fiber Optic Fusion Splicing

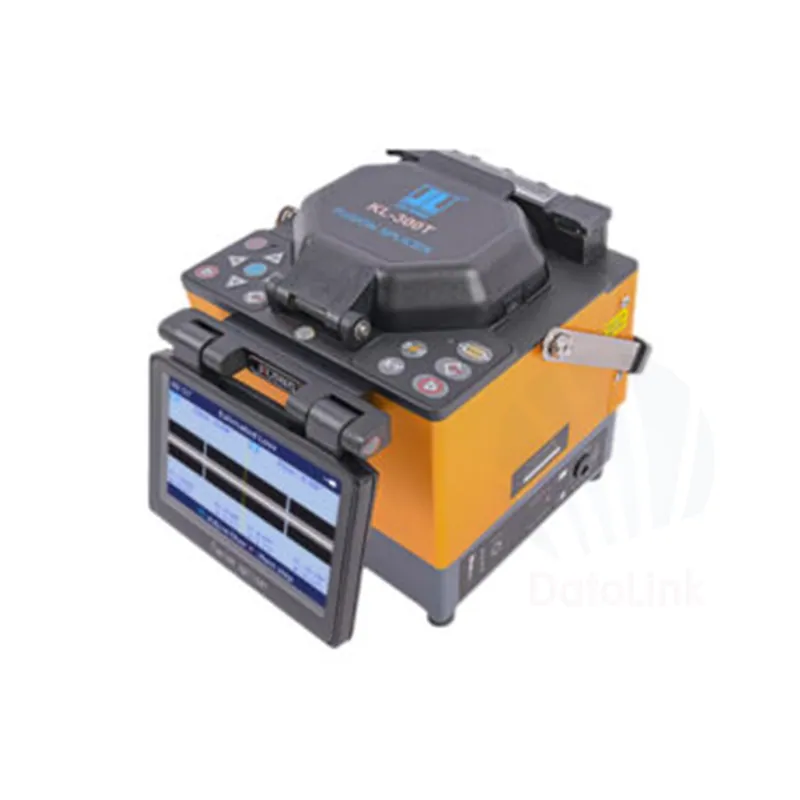

FTTH Optical Fiber Fusion Splicer KL-300T

Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Testers & Tools Fiber Optic Fusion Splicing
Application: FTTX, FTTH, CATV projects Products Features: Fiber type identification function, 6 motors core alignment V-groove precise alignment, high quality and low loss Auto-splicing mode,using friendly design Dust- proof, water- proof,high temperature resistance, adapting to various altitude and harsh environment * 5’high resolution color LCD touch screen, 500X magnification, visible clearly with bare eyes Packed with detachable 5200mAh battery, more than 280 times of splicing and heating High-power LED white light simplifies your work at night Detachable multifunction fixture,suitable for various fiber type Technical Parameter:
Applicable Fibers SM, MM, NZ-DS, EDF , Pigtail, Cable, Rubber-insulated wire Series
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss ≥60dB
Tension Test 2.0N(200gf)(Standard)
Typical splicing time 6 seconds
Typical heating time 15 seconds
Operating Language Multi-language
Operating Conditions -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Protection Sleeve Length 40mm, 45mm, 60mm
Power SupplyAC input AC input AC adaptor: 100~240V input voltage, 50/60Hz;
DC input 12V, 5A output voltage(DC)
Battery Inner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat
Monitor Dual cameras, 90 bi-dirctional
Fiber Image Magnification X or Y Separately 400times or Simultaneously 200times
Splicing Model Auto & Manual & Full Auto
Estimated Splice Loss Available

Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
