DTLFTB-104/108/116

Fiber Optic Patch Panel&ODF

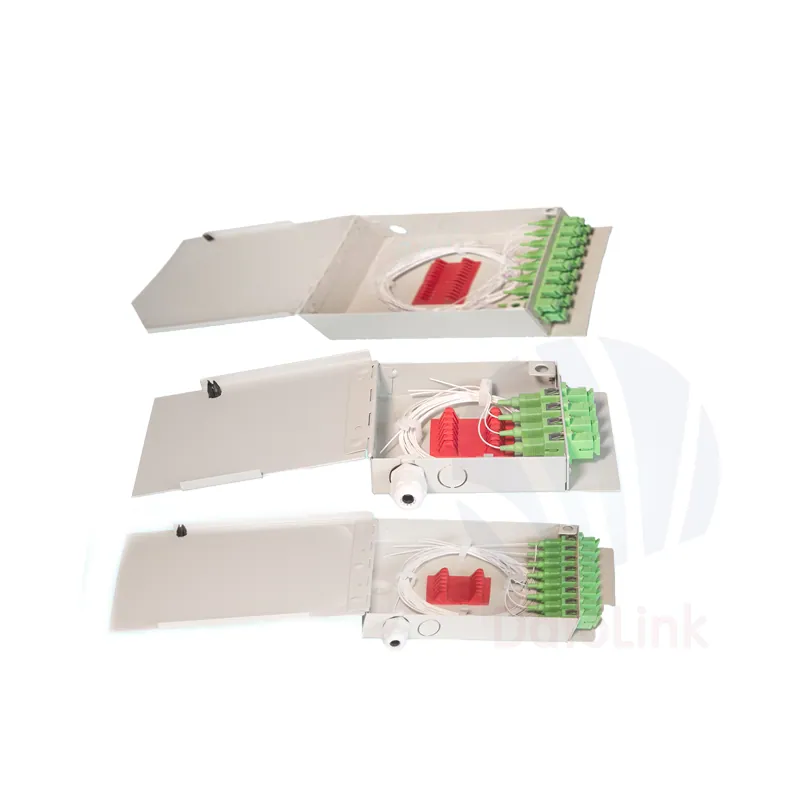

DTLFTB-104/108/116

The series are used in the end termination of residential buildings and villas, to fix and splice withpigtails. Hinge and convenient press pull button lock design. Wall mounted with mechanical protection system, Max capacity is 4-16 cores, and 4-16 adapter outputs, available for FC.SC.ST.LC adapters.

Brand
Datolink
Manufactured in
Shenzhen, Guangdong, China
Warranty
12 months
OEM and ODM
Accepted
Request A Quote Talk To An Engineer Request A Sample Email Us

Drawings and specifications can be sent by WhatsApp or to [email protected]. Replies within 12 to 24 hours on working days.

Fiber Optic Patch Panel&ODF

Introduction：

Used in the end termination of residential buildings and villas,to fix and splice with pigtails.Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function; Max fiber capacity is 8 fibers, 8 adapters output, available for FC, SC, ST, LC Adapters.



Features：

* small size,light weight,pleasing in appearance
* wall mounted with mechanical protection function
* max fiber capacity 4-16 fibers,4-16 adapter output
* available for FC,SC,ST,LC adapters
* hinge and convenient press-pull button lock design

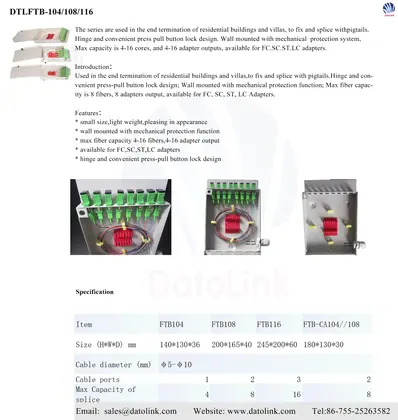

Specifications

Item FTB104 FTB108 FTB116 FTB-CA104//108
Size (H*W*D) mm 140*130*36 200*165*40 245*200*60 180*130*30
Cable diameter (mm) φ5-φ10
Cable ports 1 2 3 2
Max Capacity of splice 4 8 16 8



Certification

CE, RoHS and Anatel obtained for most products, under an ISO 9001 quality management system.

Inspection

IQC on incoming materials, IPQC in process and OQC before shipment, with a pre-production sample before mass production.

Export

Exported to over 80 countries. Delivery on FOB, CFR, CIF, EXW or FCA terms.
