Model UF160

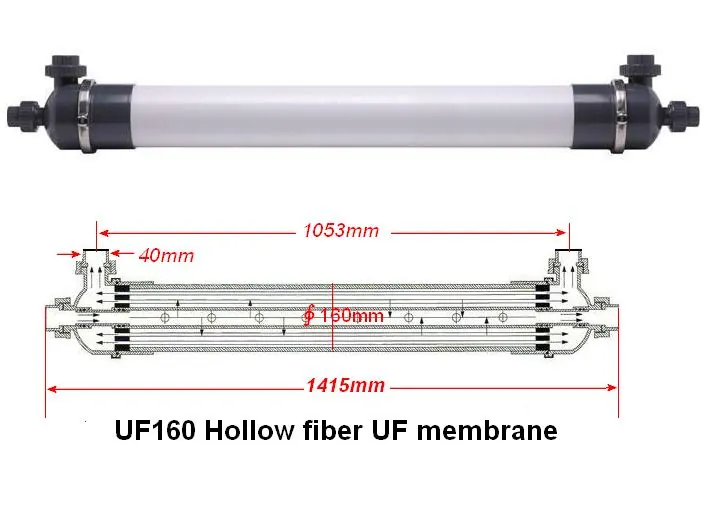

UF160 hollow fiber ultrafiltration module, 160mm diameter, DN40 socket, 15 to 28 square metre effective membrane area.

Shanghai China · Tel +86-21-68315320 · [email protected]

Model No.	UF160
Hollow fiber material	PAN	PP	PS/PES	PVDF
Dimensions	Φ160X1415mm or as clients’ requirement
Socket connector size	DN40
Hollow fiber ID/OD(mm)	1.0/ 1.6	0.4 / 0.5	0.8/1.2 or 1.0 / 1.6	0.7mm / 1.3mm
Filtration type	Inside-out	Outside-in	Inside-out	Outside-in
Effective membrane area	15m 2	28m 2	15m 2	24m 2
Intercept molecular Weight (Daltons)	50000 ～ 100000	100000	10000 ～ 100000	100000
Initial flux T/H	>4.5	>5.0	>4.5	>5.0
Designed flux T/H	0.6-1.2	0.6-1.5	0.6-1.2	0.6-1.5
End seal material	Epoxy resins
Outer shell material	UPVC
Max. Feed pressure	0.3mpa
Recommendatory feed pressure	0.06-0.15mpa
Trans Memb Pressure	0.04-0.08 mpa	0.04-0.15mpa	0.04-0.15mpa	0.04-0.15mpa
Working temperature	5-45 ℃
Feed water turbidity	<50NTU	<70 NTU	<50 NTU	<70 NTU
PH range	3-10	2-13	2-13	2-13
Filtrate SDI	<1	<2	<1	<2
Filtrate Turbidity	<0.1 NTU	<0.2 NTU	<0.1 NTU	<0.2 NTU
Coliform & Bacteria removal	99.9%
Life Span	One year, operated strictly under the above technical data
Remark: Initial output flow rate test under purified water at 25 ℃ and 0.1 Mpa conditions
