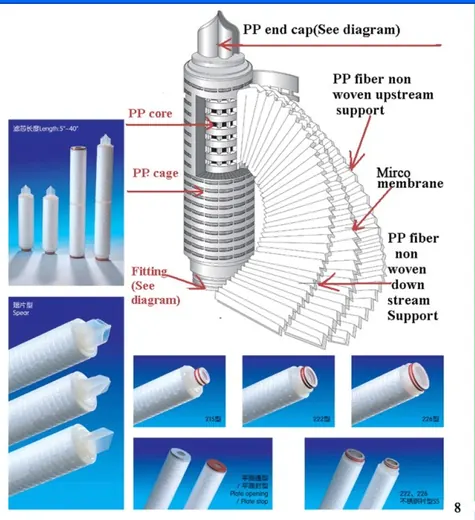

Pleated filter cartridge (Micro Pleated membrane) The media of Pleated filter cartridge is constructed of fine PP/PES/PTFE/ . Adaptors are thermally welded with media without using any glue, so there will be no any possibilities to cause pollution.
PP pleated cartridge
| Membrane Media | Polypropylene |
| Lengths & Diameter | 5--40inch; OD. Φ 69 mm, ID. Φ 28mm |
| Removal Ratings & Filtration area | 0.1-50 micron; 0.50-0.70 ㎡ |
| Max. Operating differential pressure | 0.4 Mpa at 25 o C |
| Max. Operations Temperature | 80 oC, at 0.1Mpa |
| Max. Temperature Sterilization | 5times, 120℃ per 20 Minutes |
PES filter cartridge
| Membrane Media | Imported Polyethersulfone |
| Lengths & Diameter | 10--40inch; OD. Φ69mm, ID. Φ 28mm |
| Removal Ratings & Filtration area | 0.22 / 0.45 micron; 0.60 ㎡ |
| Max. Operating differential pressure | 0.21Mpa at 25℃ |
| Max. Operations Temperature | 85 o C at 0.1 Mpa |
| Max. Temperature Sterilization | 20times, 121℃ per half hour |
PTFE Pleated filter cartridge
| Membrane Media | Imported Polytetrafluoroethylene |
| Lengths & Diameter | 5--40inch; OD. Φ69mm, ID. Φ 28mm |
| Removal Ratings & Filtration area | 0.22/0.45 micron(Liquid); 0.02/0.05um(Gas)/ 0.60 ㎡ |
| Max. Operating differential pressure | 0.42 Mpa at 25℃ |
| Max. Operations Temperature | 90℃ at 0.15Mpa |
| Max. Temperature Sterilization | 20tims, 121℃ per half hour |
